| Type | Power Station Globe Valve |
| Design Standard | ASME B16.34 / BS 1873 |
| Face to Face | ASME B16.10 |
| Connection | Butt Weld / Flanged |
| End Standard | ASME B16.25 / ANSI B16.5 |
| Body Material | Alloy Steel (WC6 / WC9) / Carbon Steel |
| Disc Material | Alloy Steel / Stainless Steel |
| Seat Material | Stellite Overlay (Metal Seat) |
| Stem Material | Alloy Steel / Stainless Steel |
| Bonnet Type | Pressure Seal Bonnet |
| Size Range | DN50 – DN600 (2” – 24”) |
| Pressure Rating | Class 300 / 600 / 900 / 1500 / 2500 |
| Temperature Range | Up to 600°C |
| Operation | Handwheel / Gear / Electric Actuator |
| Applicable Media | Steam, Superheated Steam, High Temp Fluids |
| Sealing Type | Metal Seated (High Temperature Resistant) |
| Leakage Standard | API 598 |
| Testing Standard | API 598 / EN 12266-1 |

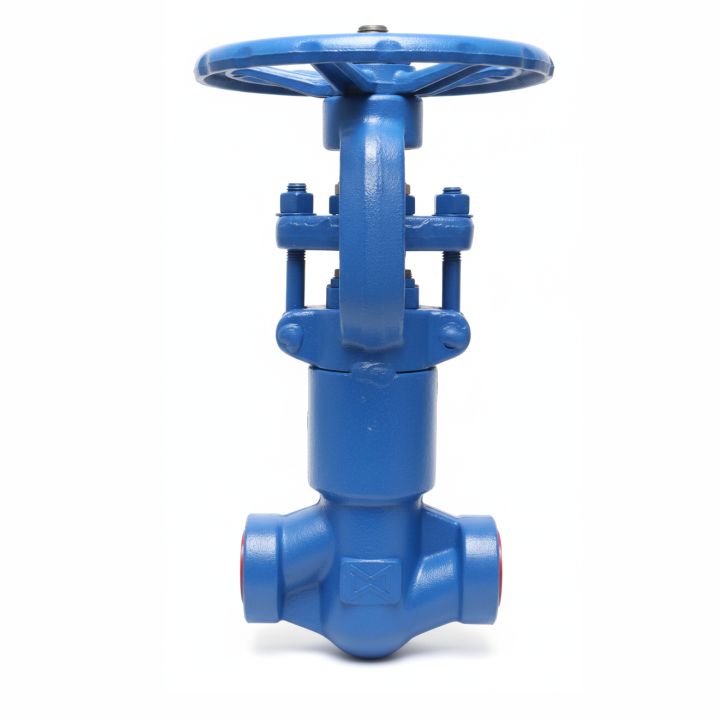

Power station globe valve engineered for high pressure and high temperature applications, delivering precise flow control, enhanced durability, and reliable long-term performance in critical power plant and heavy industrial systems, including steam and superheated fluid services.
