Description
API cast steel globe valve with JIS 10K flanged connection, designed for precise flow control and reliable performance in medium pressure and high temperature industrial applications.

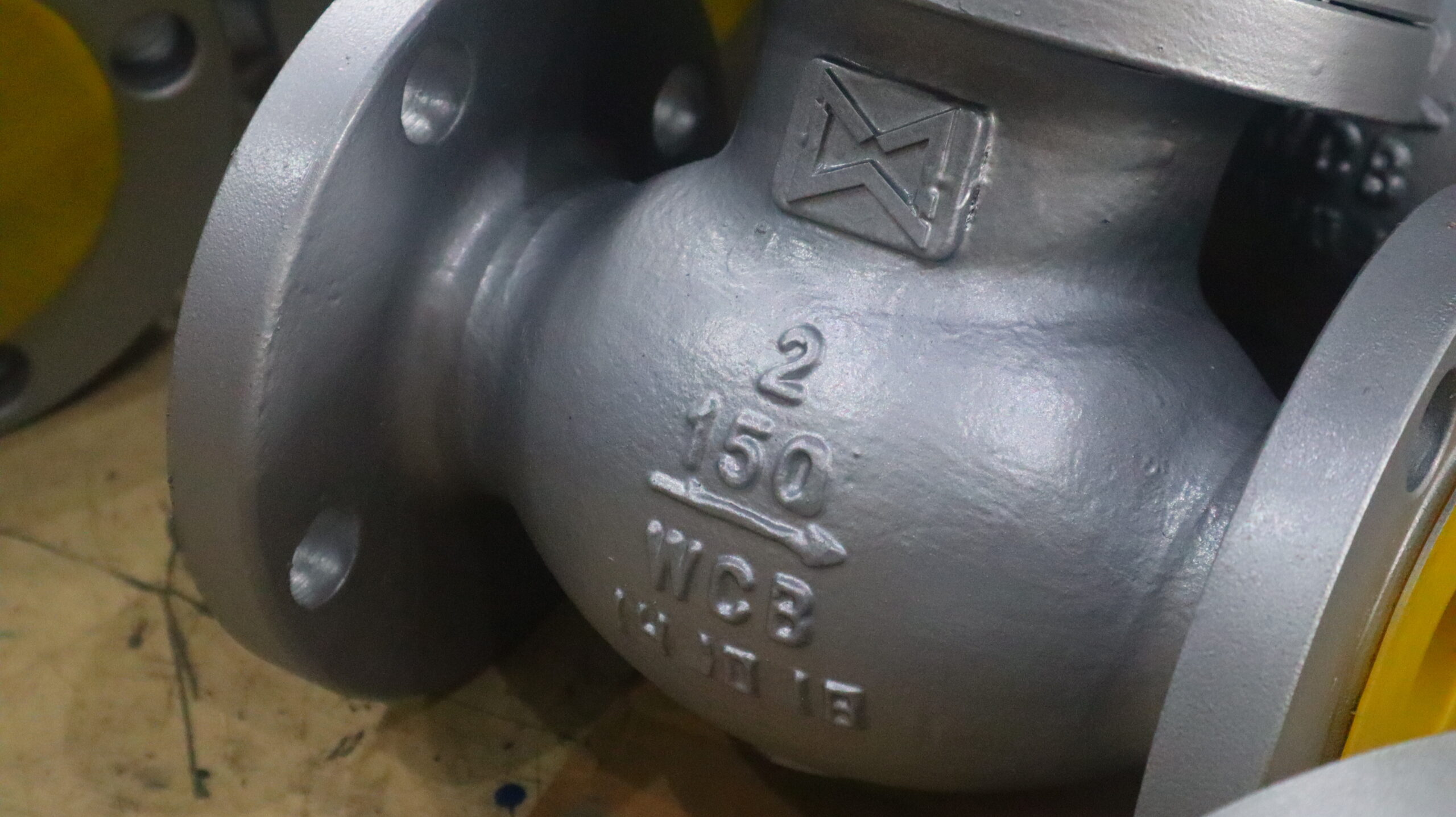

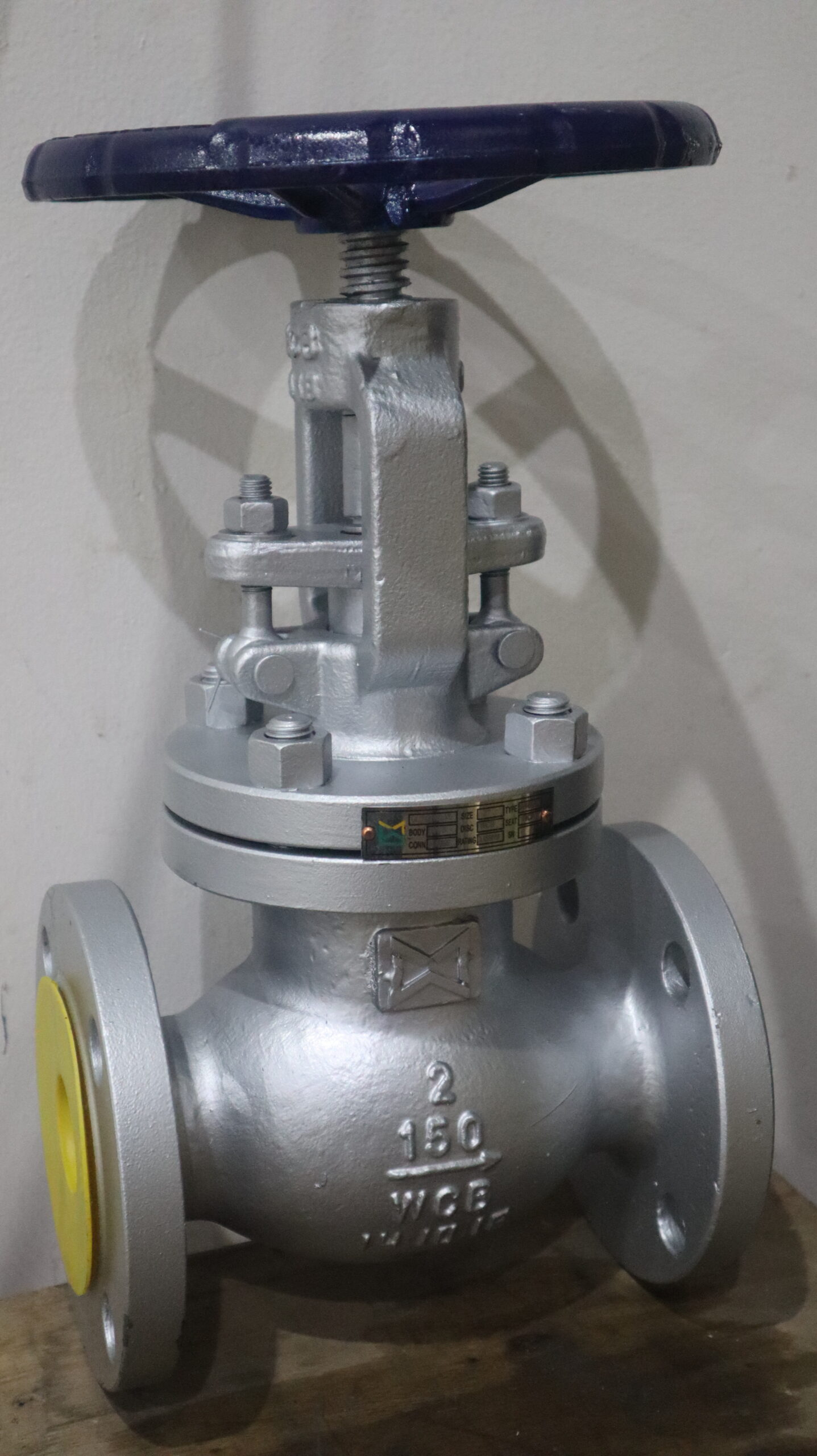

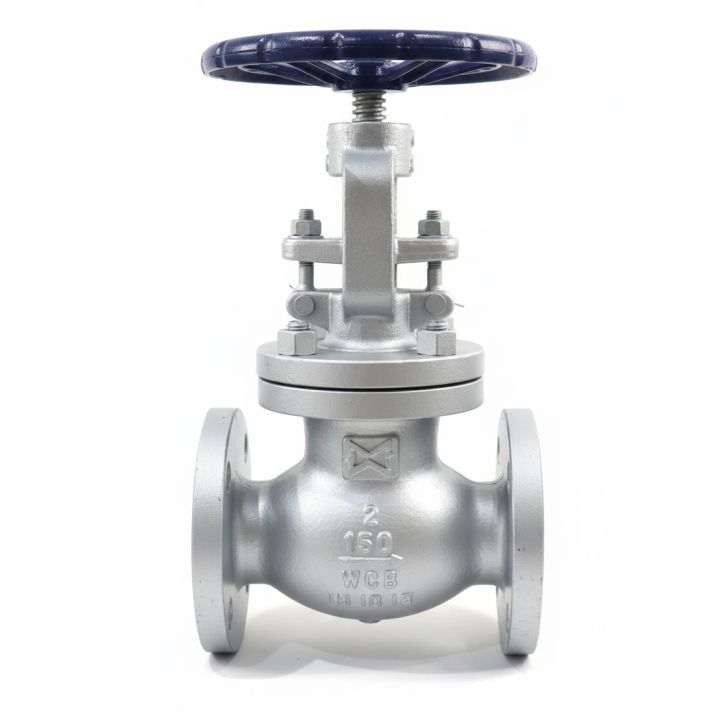

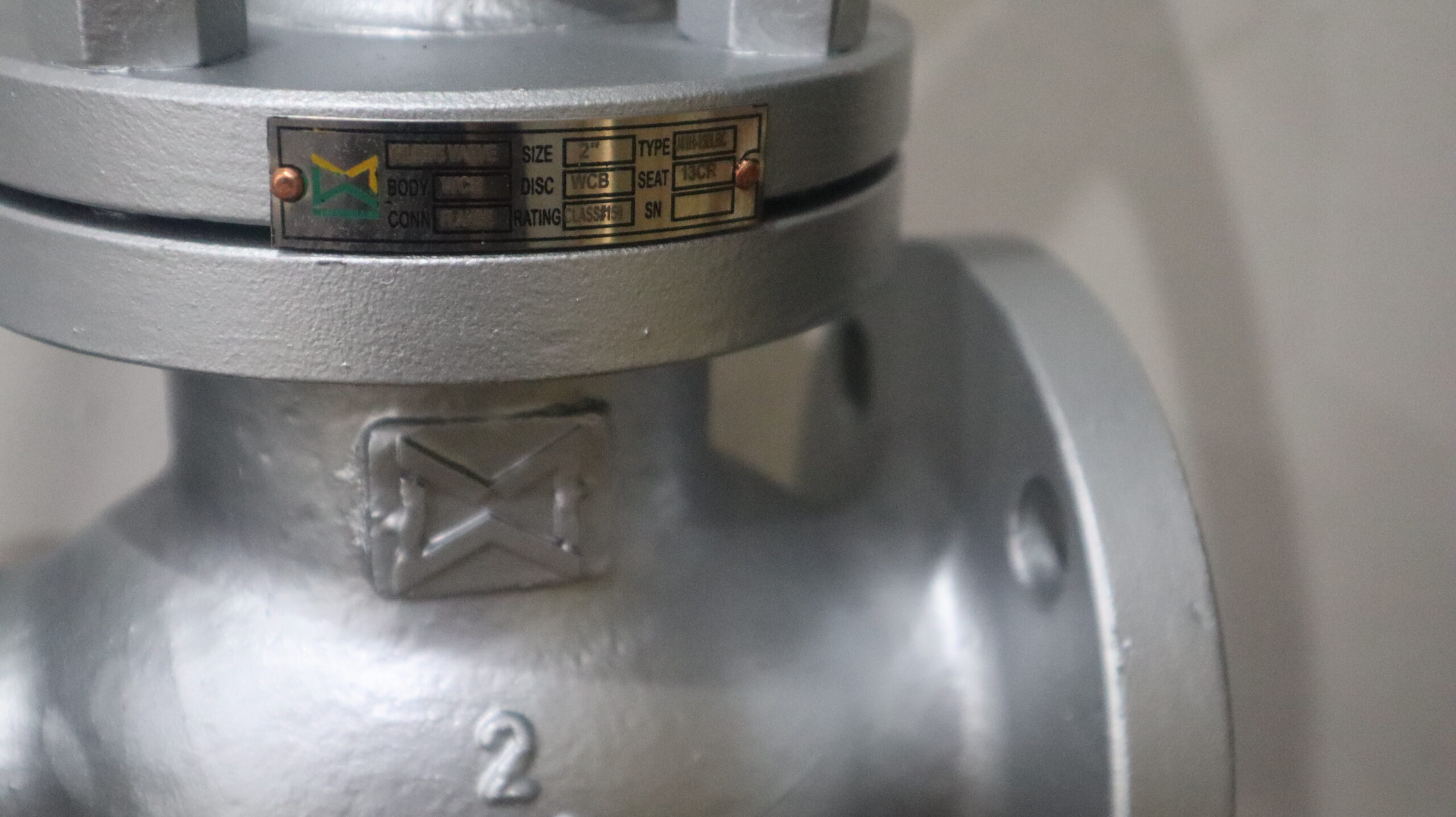

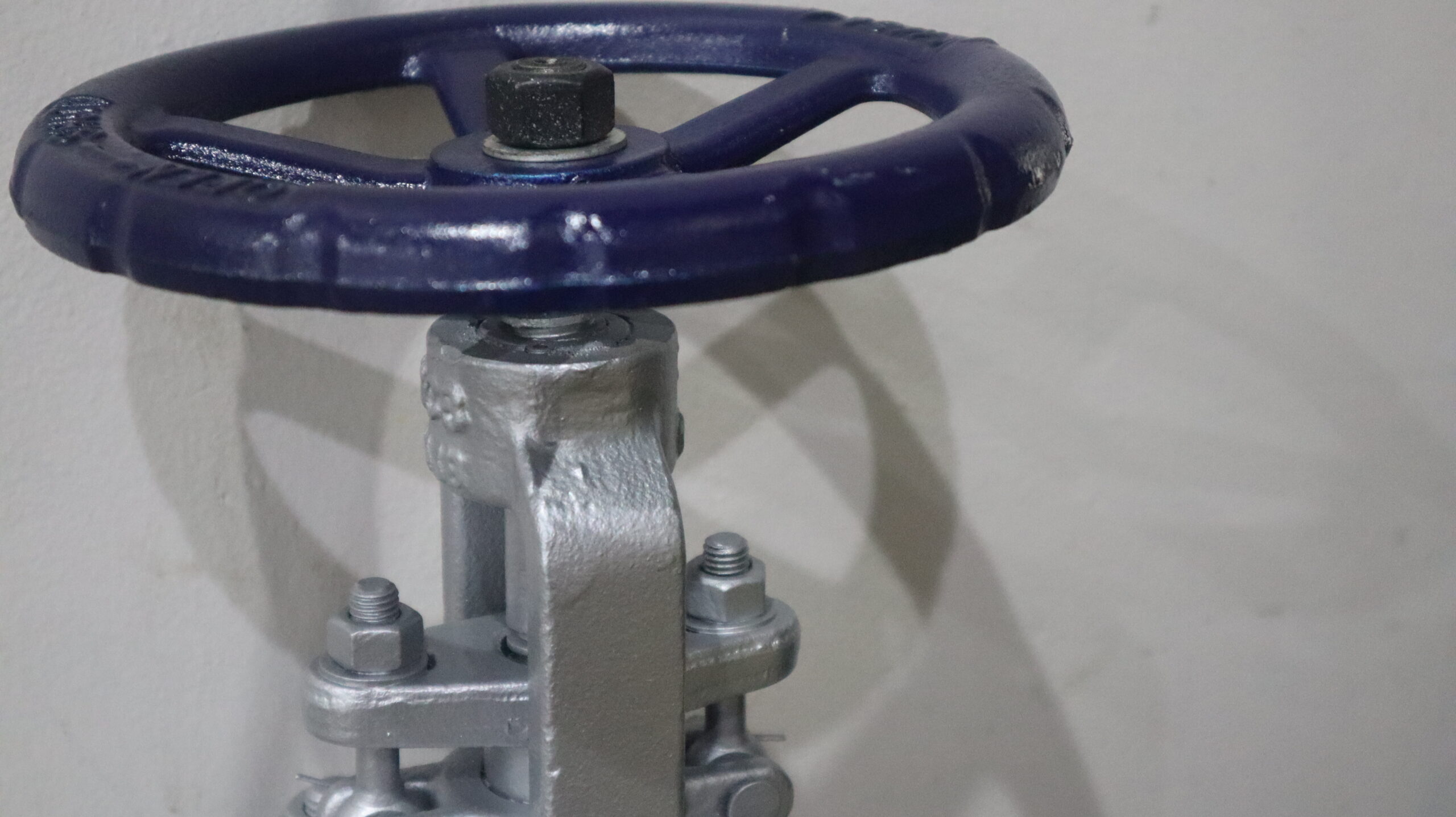

API Cast Steel Globe Valve JISK10K
| Type | API Cast Steel Globe Valve (JIS 10K) |
| Design Standard | API 600 / BS 1873 |
| Face to Face | ASME B16.10 |
| Connection | Flanged Type |
| Flange Standard | JIS B2220 10K |
| Body Material | Cast Steel (WCB) / Stainless Steel |
| Disc Material | Stainless Steel / Alloy Steel |
| Seat Material | Metal Seat (Hardened Alloy) |
| Stem Material | Stainless Steel |
| Size Range | DN15 – DN300 (½” – 12”) |
| Pressure Rating | JIS 10K |
| Temperature Range | -29°C to +425°C |
| Operation | Handwheel / Gear / Electric Actuator |
| Applicable Media | Steam, Oil, Gas, Water |
| Sealing Type | Metal Seated |
| Leakage Standard | API 598 |
| Testing Standard | API 598 / EN 12266-1 |
