Description
Electric actuator operated butterfly valve for on/off and modulating service, suitable for low to medium pressure applications in water, HVAC, and general industrial systems.

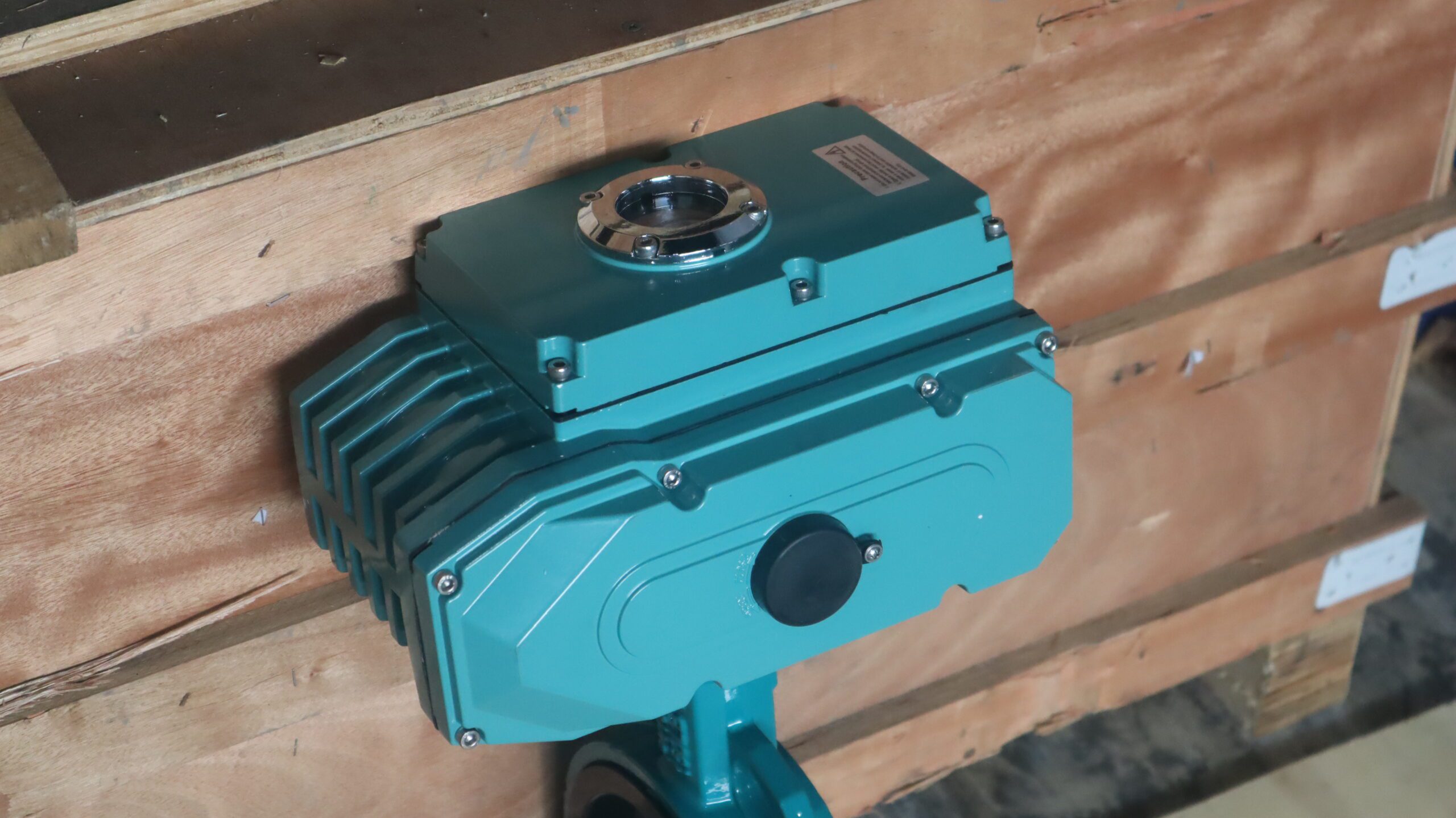

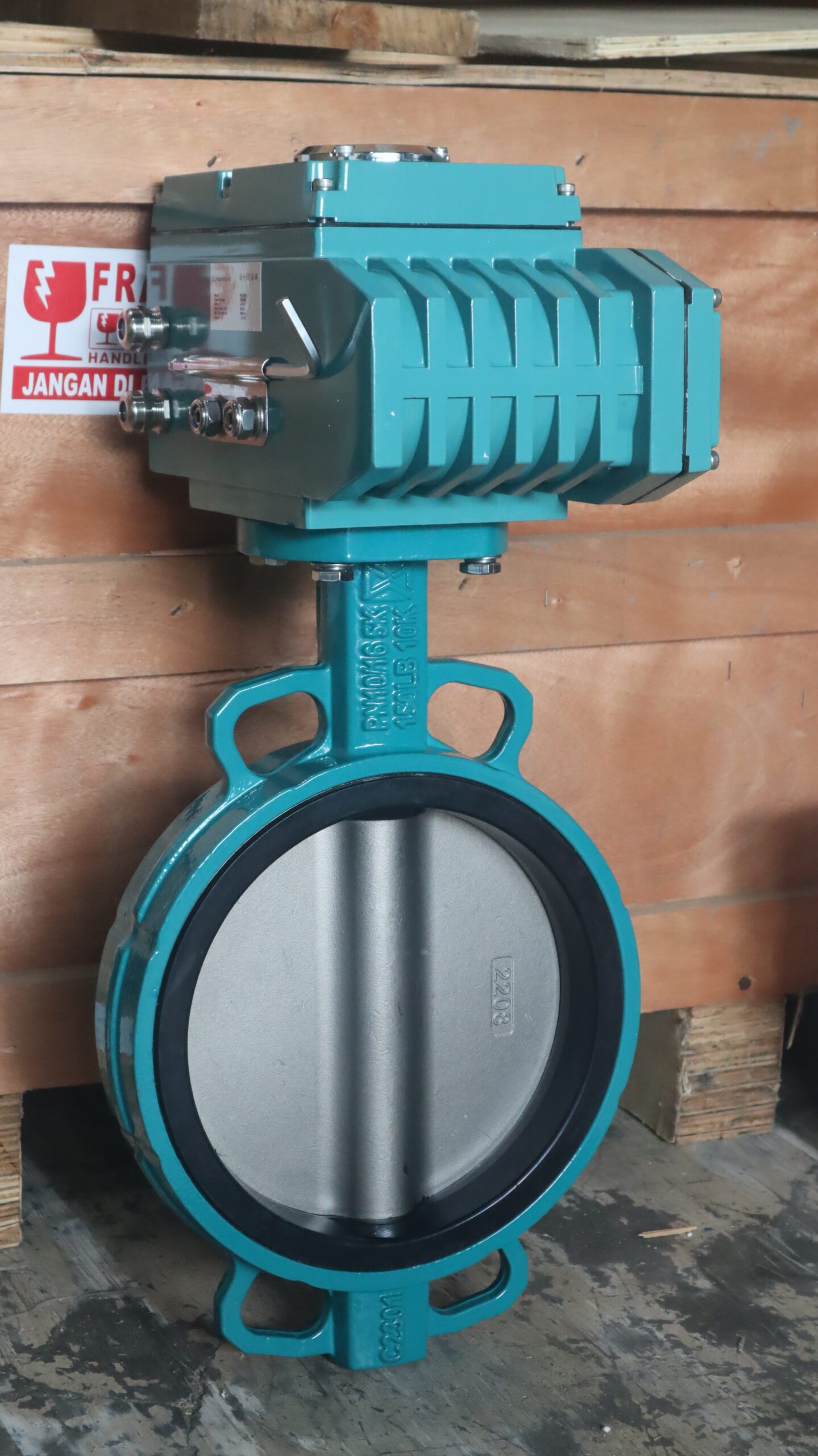

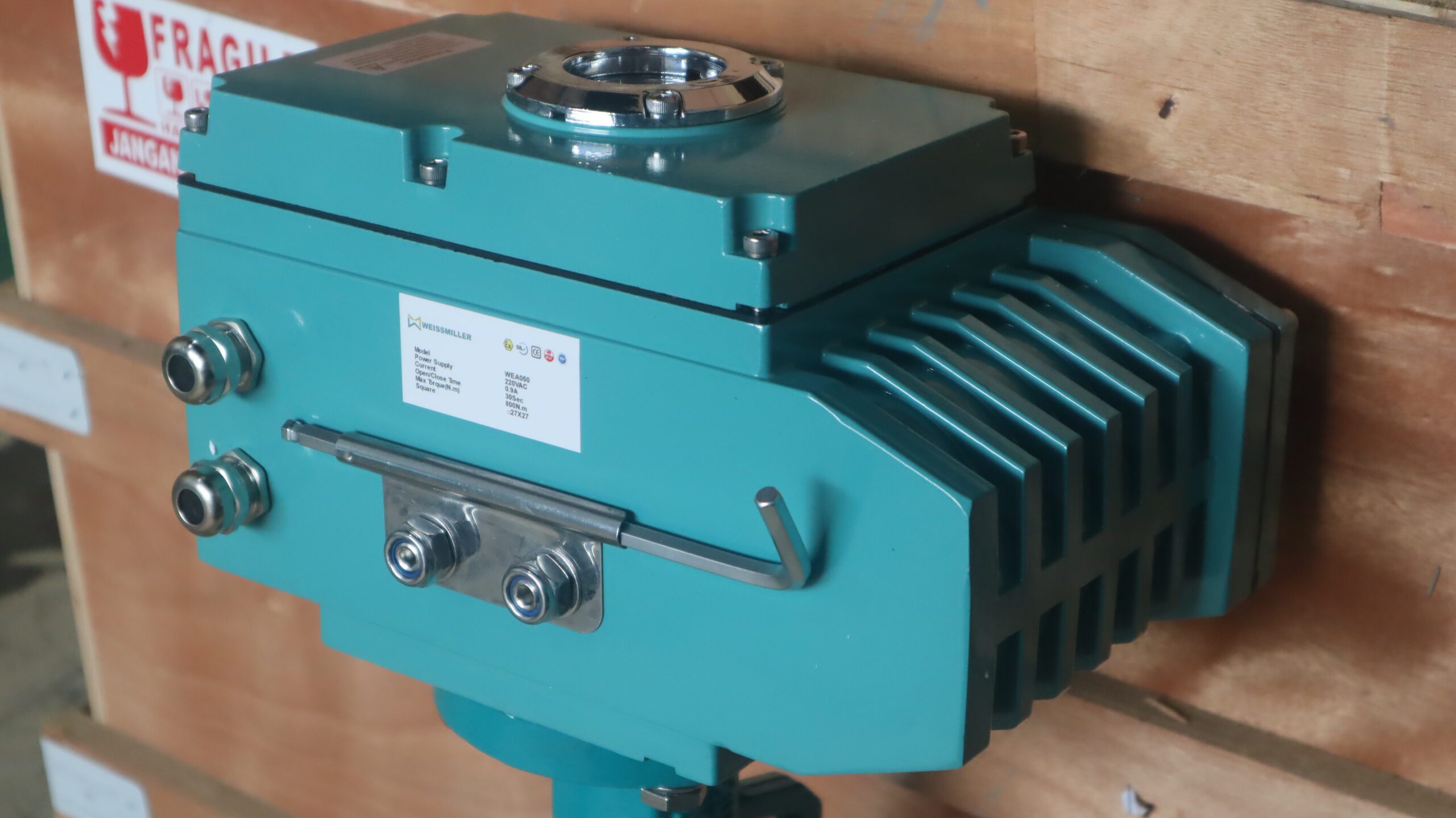

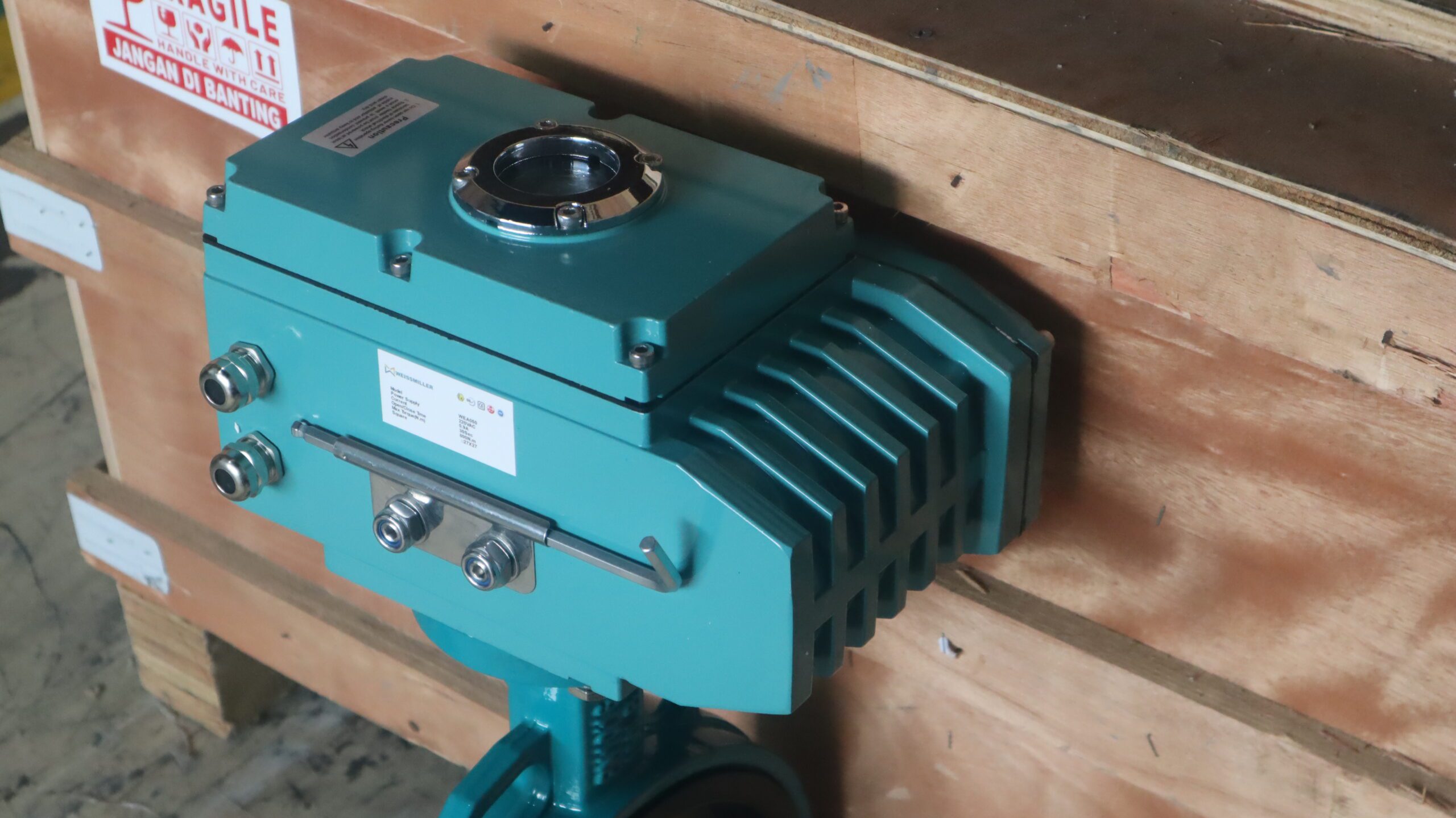

Electric Actuated Butterfly Valve
| Type | Electric Actuated Butterfly Valve |
| Design Standard | API 609 / EN 593 |
| Face to Face | API 609 / ISO 5752 |
| Connection | Wafer / Lug / Flanged Type |
| Flange Standard | ANSI B16.5 / EN 1092-1 |
| Body Material | Ductile Iron / Cast Iron / Stainless Steel |
| Disc Material | Stainless Steel / Ductile Iron (Coated) |
| Seat Material | EPDM / NBR / PTFE |
| Shaft Material | Stainless Steel |
| Size Range | DN50 – DN1200 (2” – 48”) |
| Pressure Rating | PN10 / PN16 / ANSI Class 150 |
| Temperature Range | -10°C to +120°C (depending on seat material) |
| Operation | Electric Actuator (On/Off or Modulating) |
| Power Supply | AC 220V / AC 380V / DC 24V (optional) |
| Applicable Media | Water, Air, HVAC, Light Chemical |
| Sealing Type | Resilient Seated (Soft Seat) |
| Leakage Standard | ANSI FCI 70-2 / API 598 |
| Testing Standard | API 598 / EN 12266-1 |
