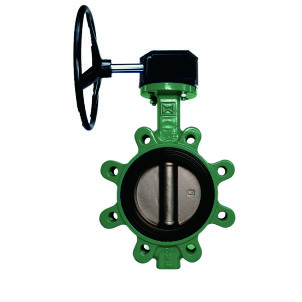

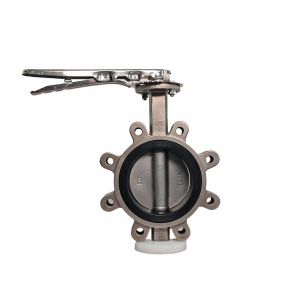

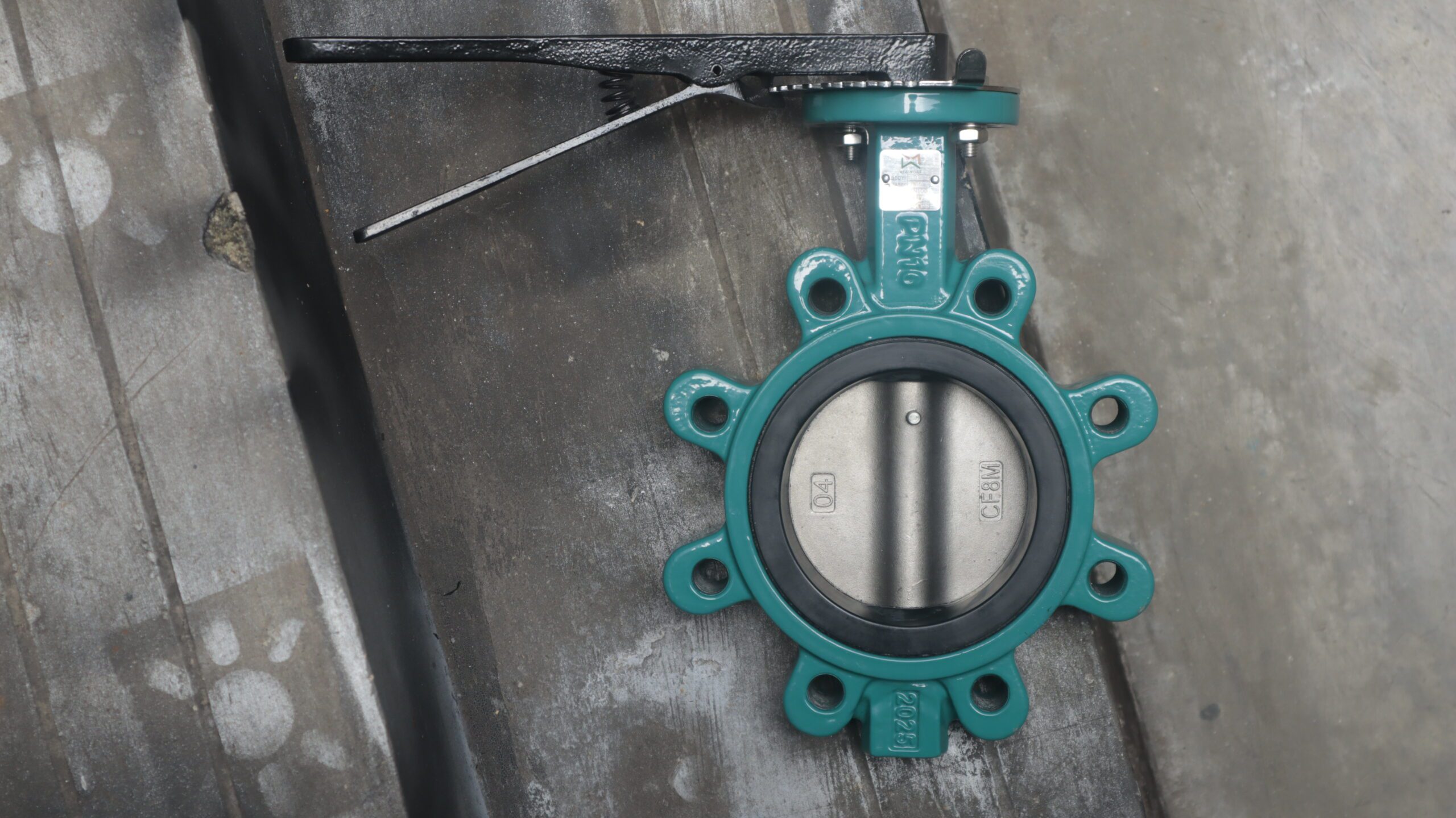

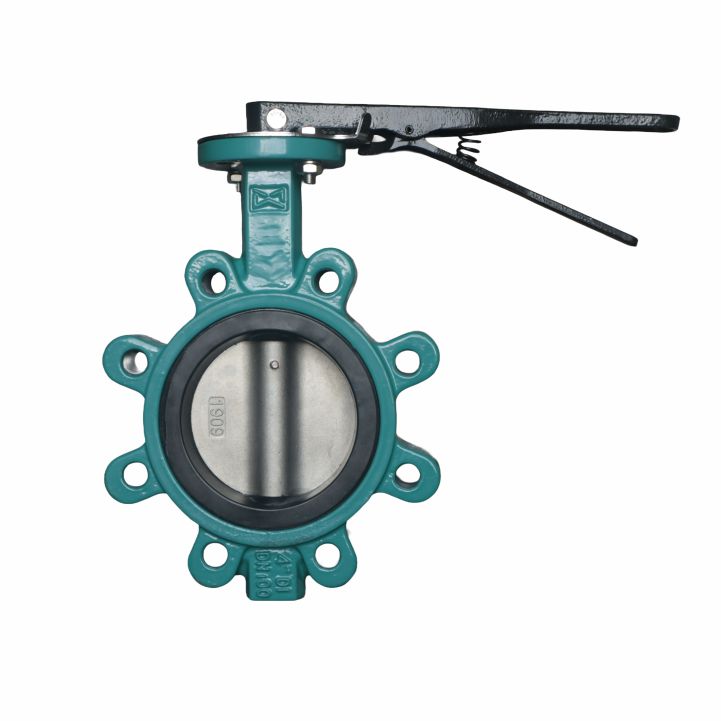

Industrial Lug Type Butterfly Valve

Type	Lug Type Butterfly Valve
Design Standard	API 609 / EN 593
Face to Face	ISO 5752 / EN 558 Series 20
Connection	Lug Type (Threaded Lug)
Body Material	Cast Iron / Ductile Iron / Stainless Steel

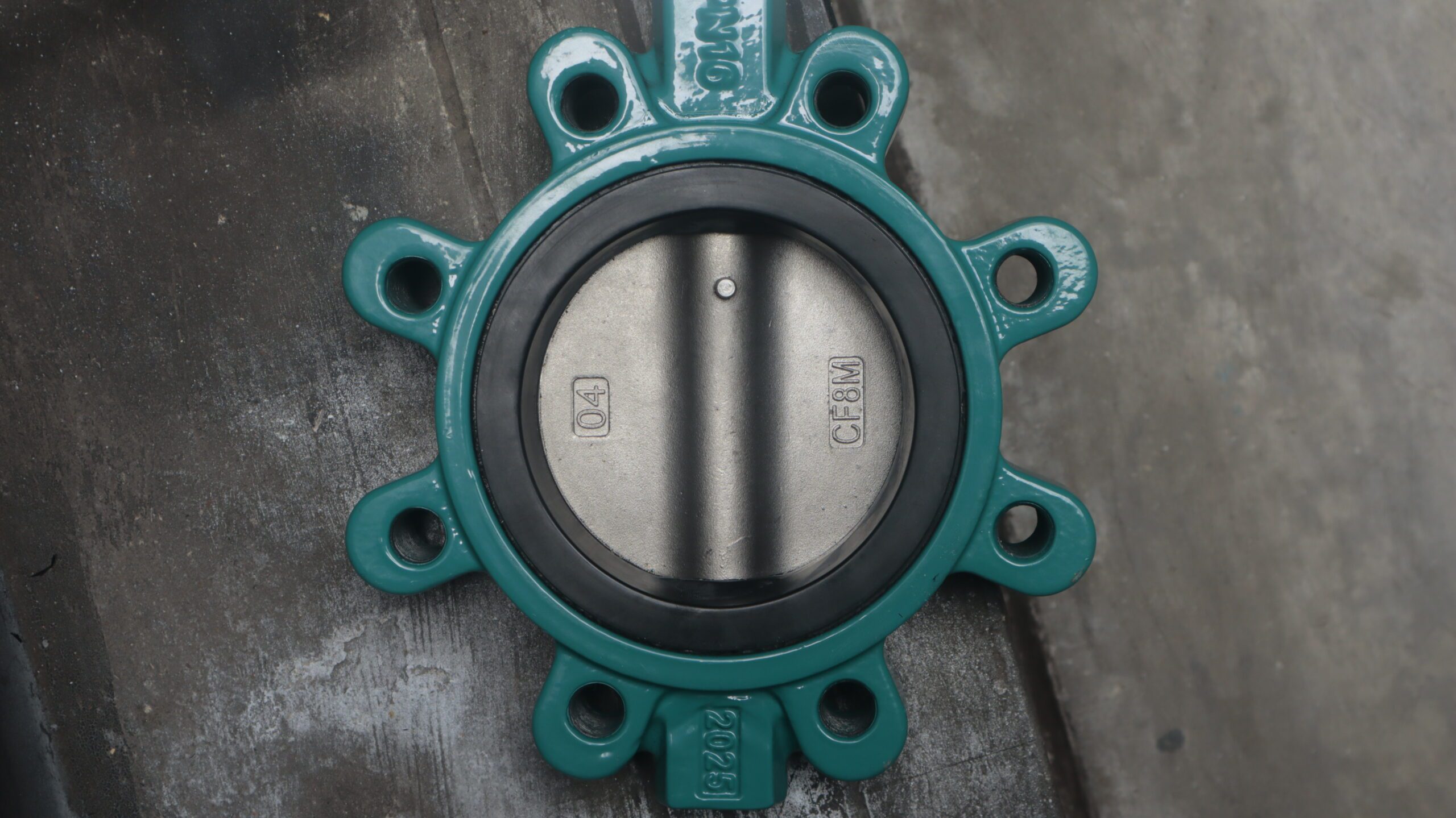

Disc Material	Stainless Steel / Ductile Iron (Coated)
Seat Material	EPDM / PTFE / NBR
Stem Material	Stainless Steel
Size Range	DN50 – DN600 (2” – 24”)
Pressure Rating	PN10 / PN16 / Class 150
Temperature Range	-10°C to +180°C

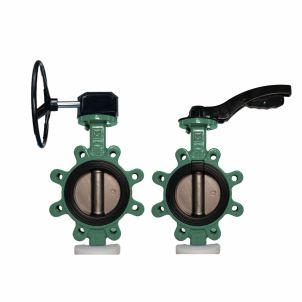

Operation	Lever / Gear / Pneumatic / Electric
Applicable Media	Water, Air, Oil, Chemical Fluids
Sealing Type	Soft Seated / PTFE Lined
Testing Standard	API 598 / EN 12266-1
Mounting Standard	ISO 5211
