Description
High-performance wafer butterfly valve with PTFE seat, designed for superior chemical resistance, tight sealing, and reliable operation in corrosive and industrial applications.

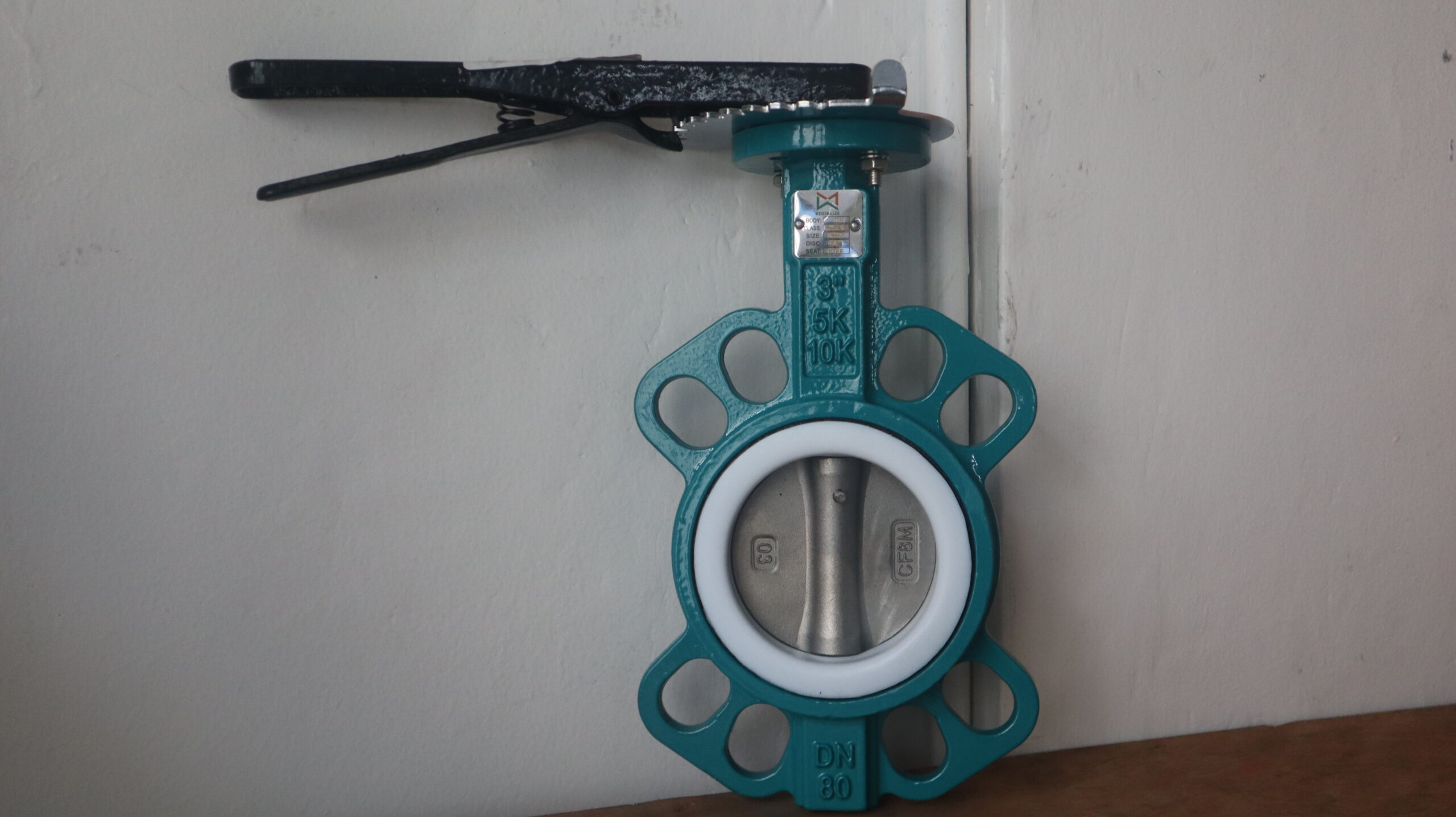

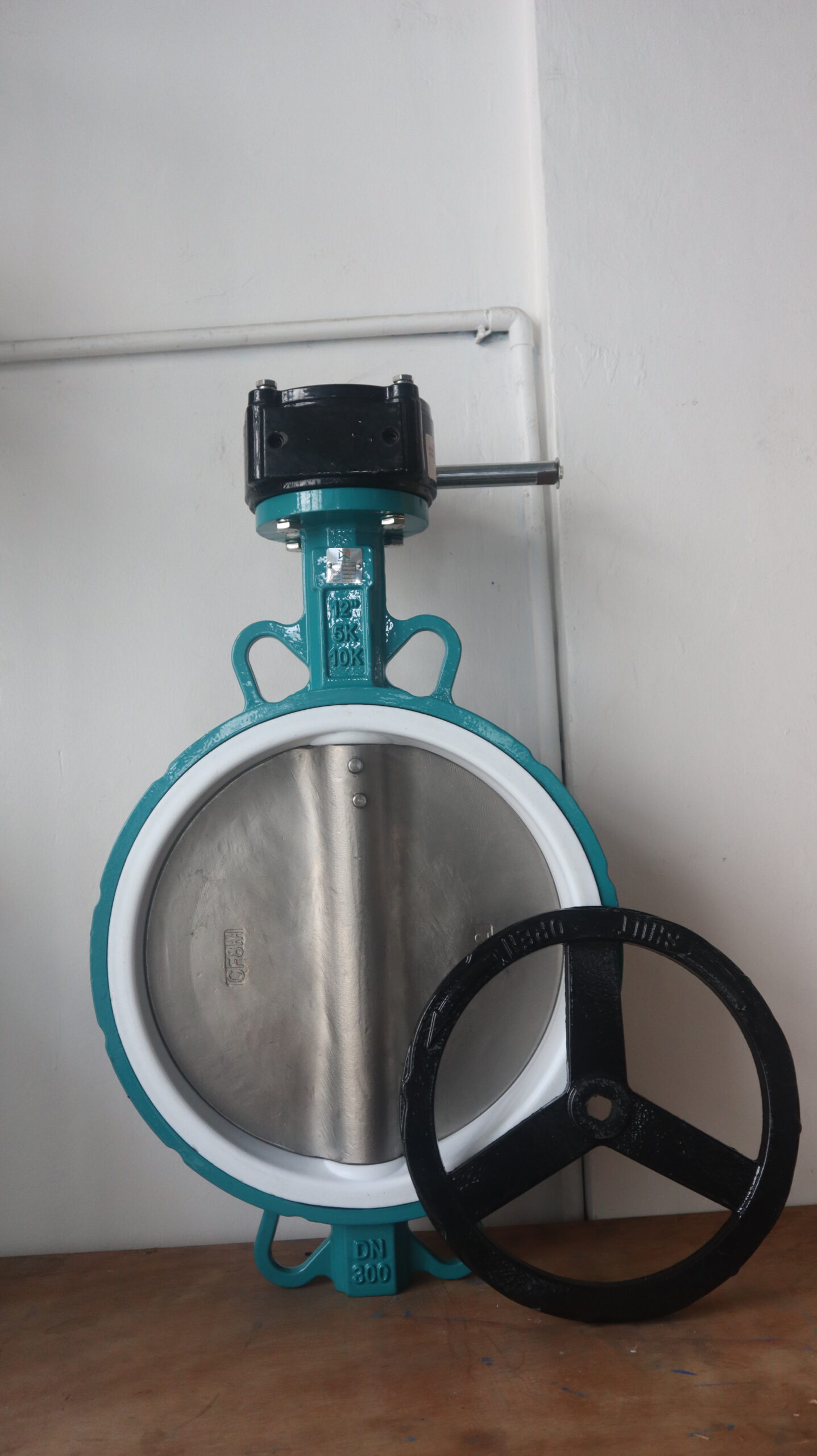

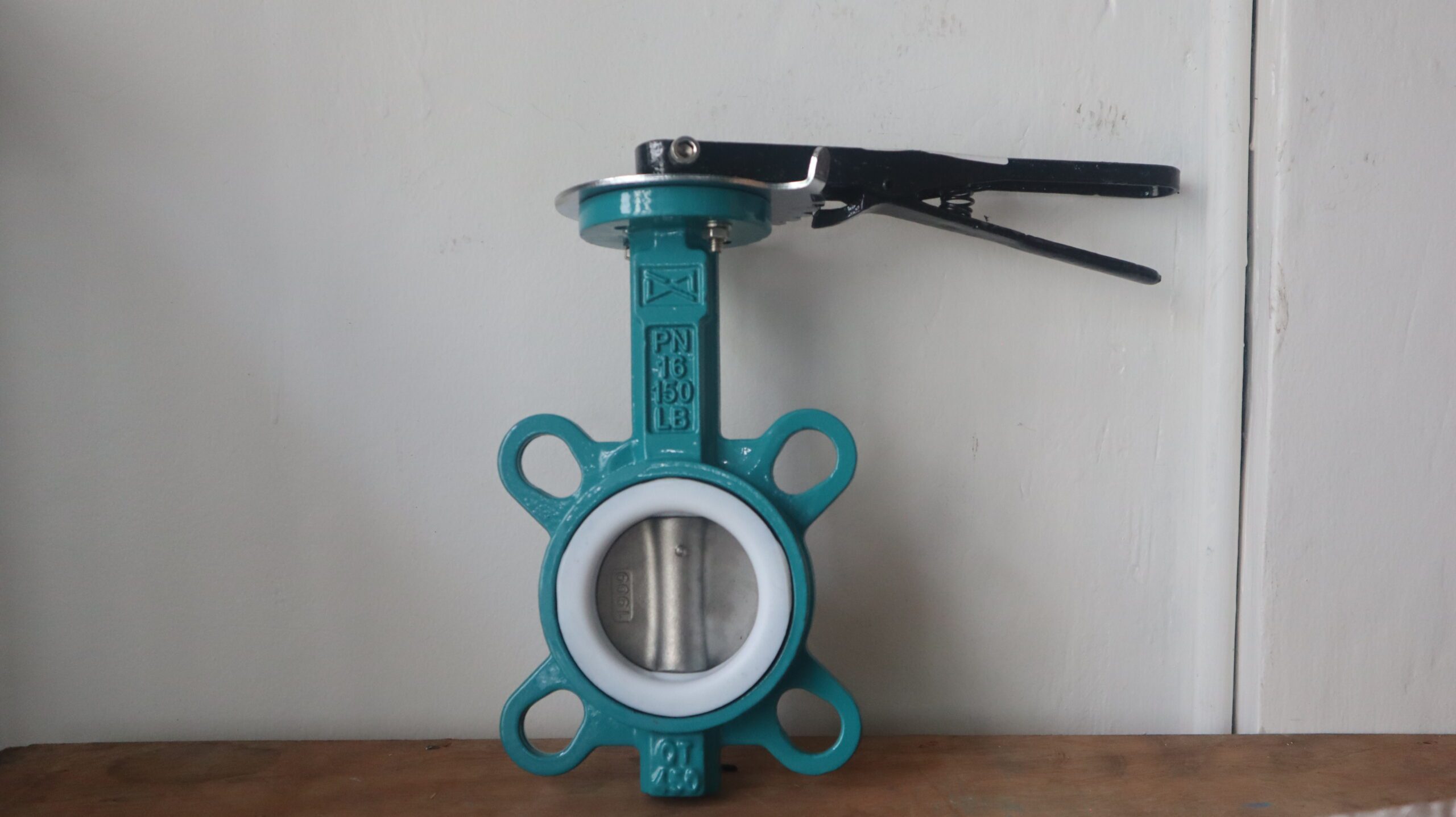

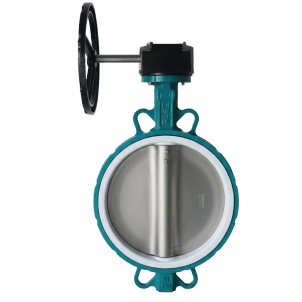

Wafer PTFE Sealing Butterfly Valve
| Type | Wafer Butterfly Valve |
| Design Standard | API 609 / EN 593 |
| Face to Face | ISO 5752 / EN 558 Series 20 |
| Connection | Wafer Type (Sandwich) |
| Body Material | Cast Iron / Ductile Iron / Stainless Steel |
| Disc Material | Stainless Steel (SS304 / SS316) |
| Seat Material | PTFE (Polytetrafluoroethylene) |
| Stem Material | Stainless Steel |
| Size Range | DN50 – DN600 (2” – 24”) |
| Pressure Rating | PN10 / PN16 |
| Temperature Range | -20°C to +180°C |
| Operation | Lever / Gear / Pneumatic / Electric |
| Applicable Media | Chemical, Corrosive Fluids, Water, Air |
| Sealing Type | Soft Seated (PTFE Lined) |
| Testing Standard | API 598 / EN 12266-1 |
| Mounting Standard | ISO 5211 |
