Description
High performance double flange butterfly valve with double offset design, engineered for secure installation, reduced seat wear, and reliable sealing in high pressure and temperature industrial applications.

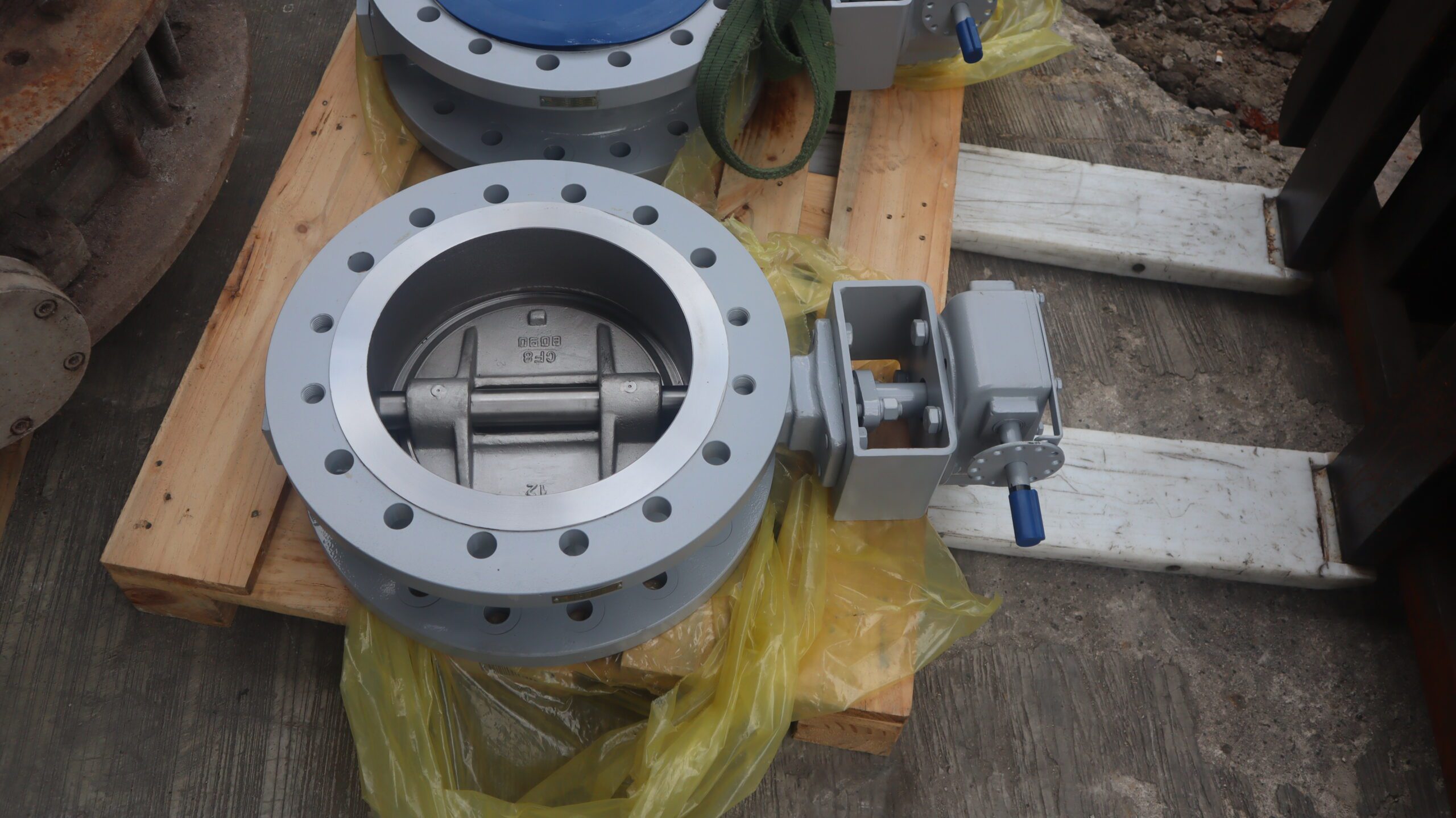

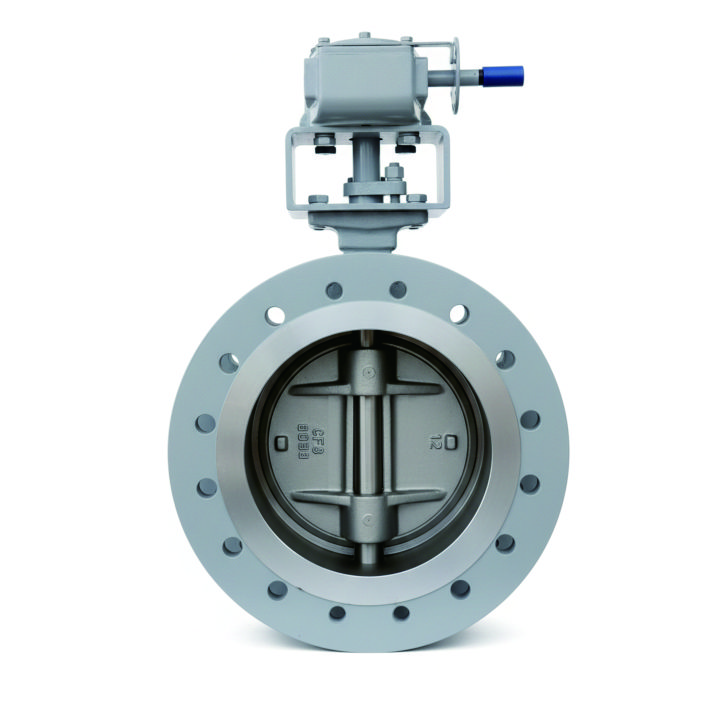

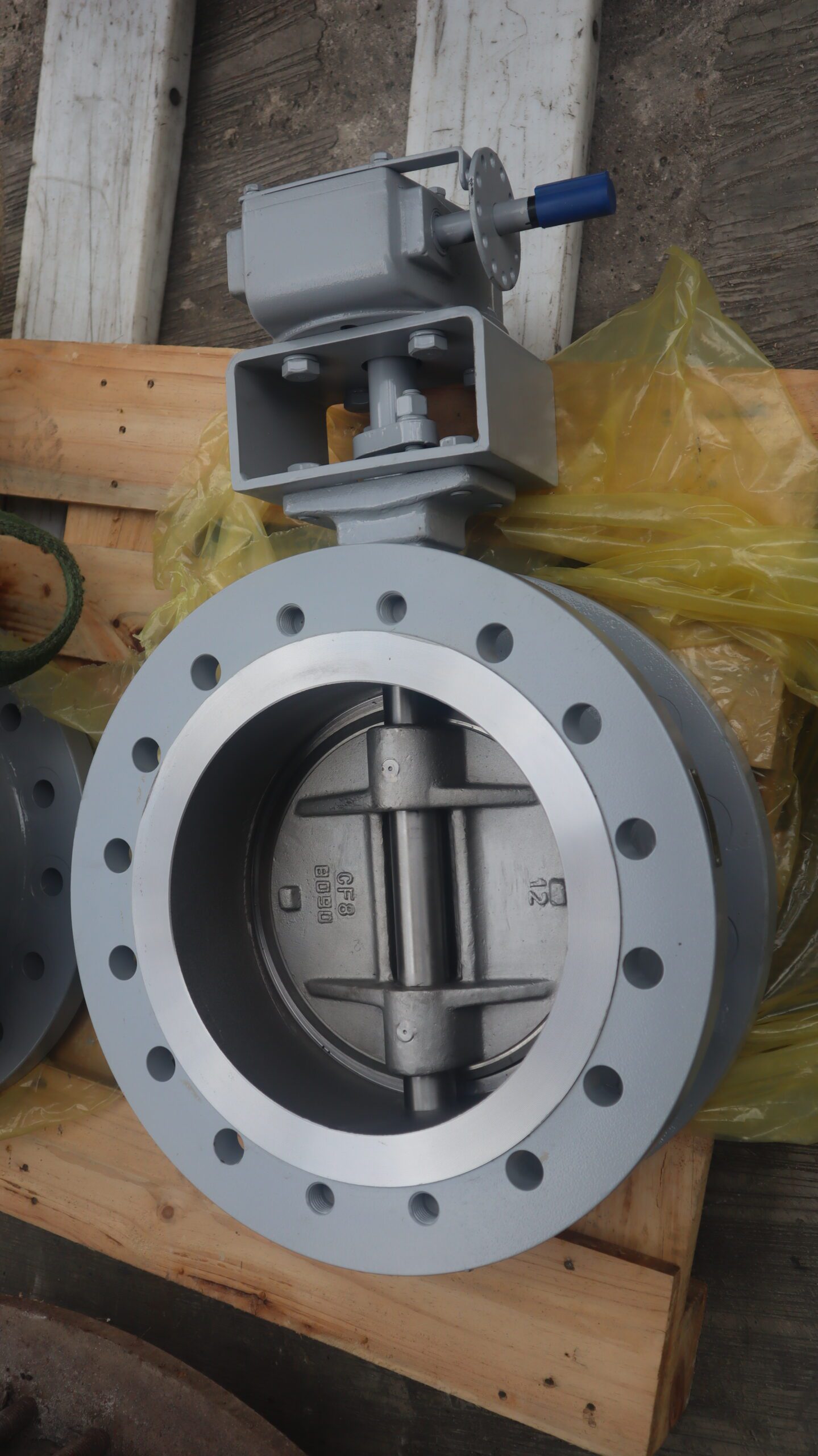

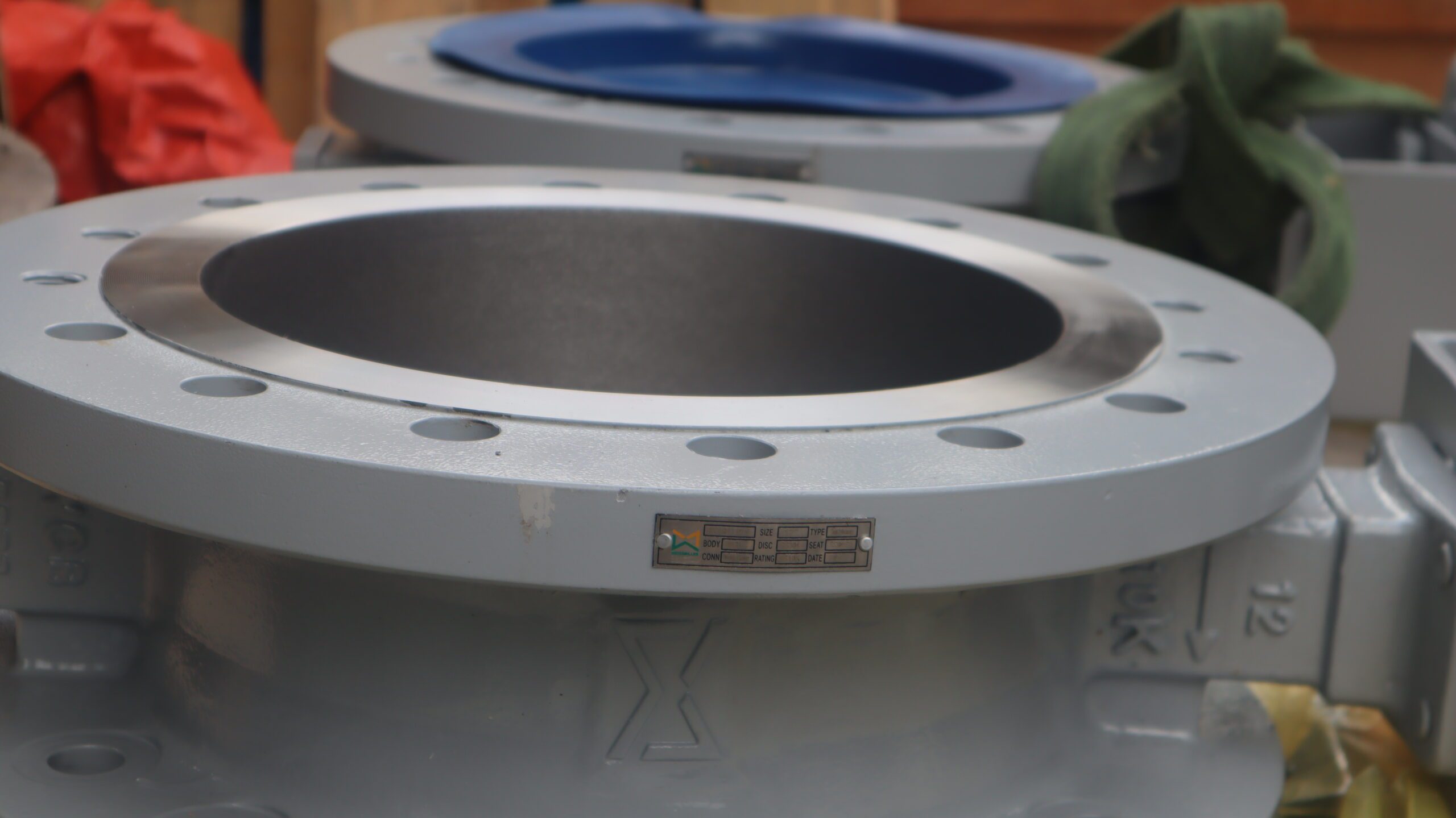

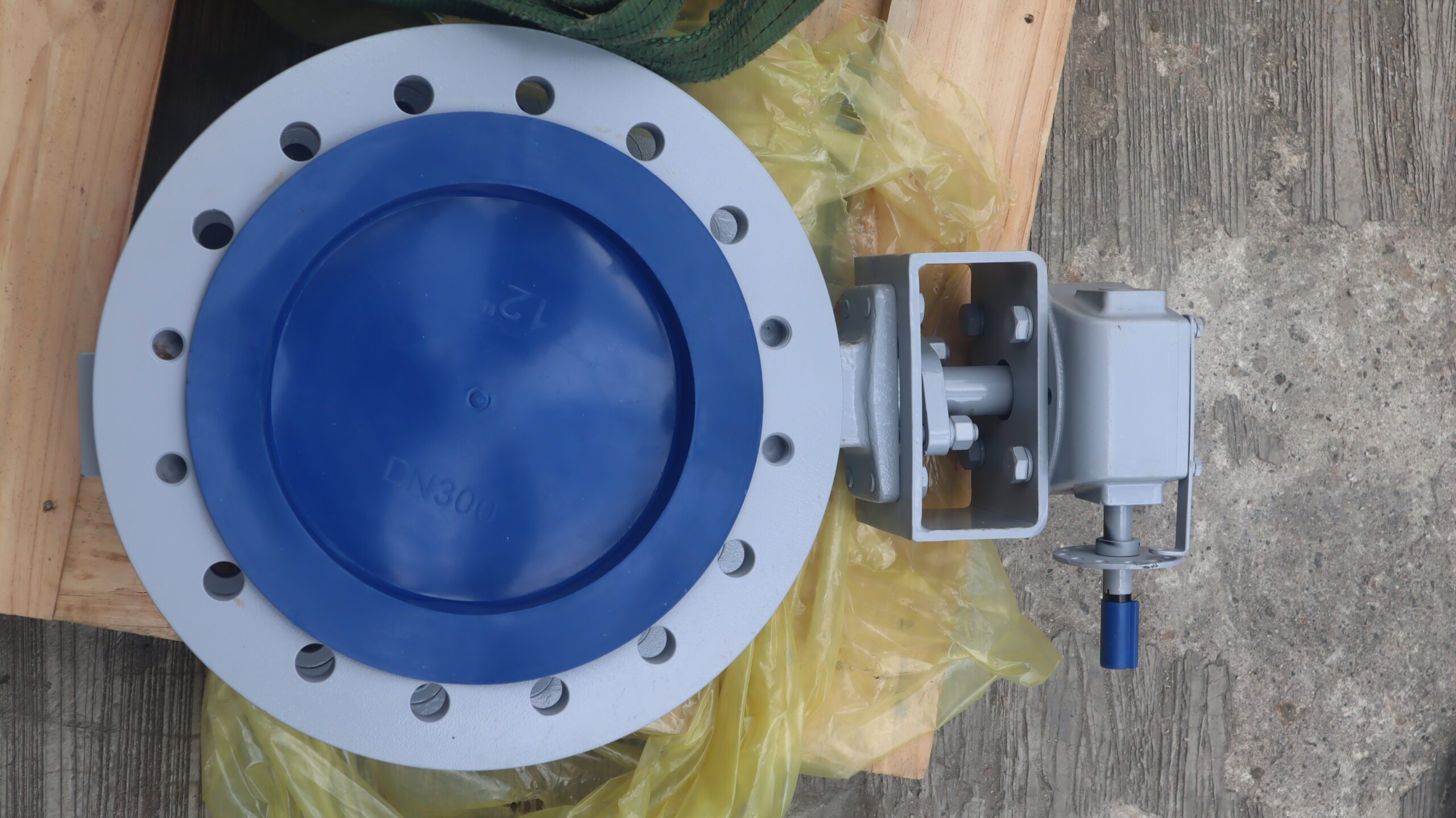

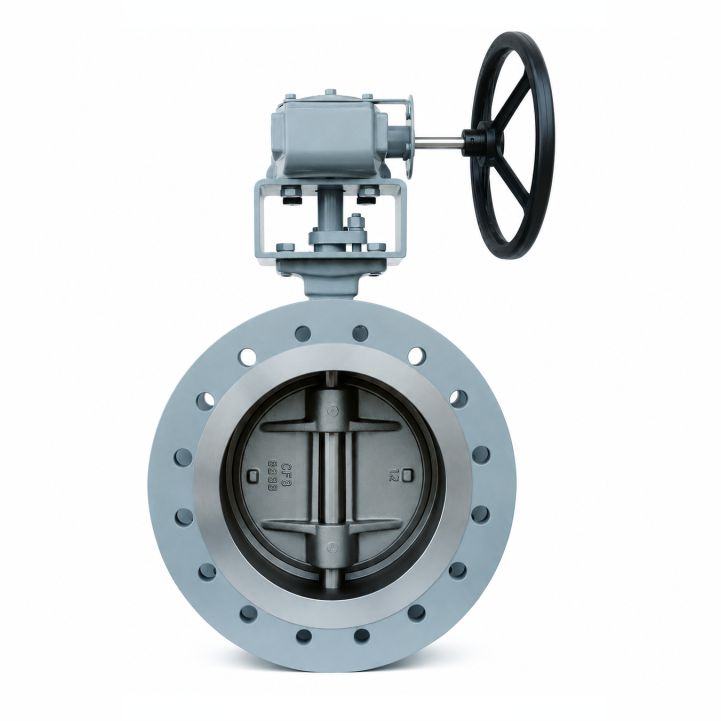

High Performance Double Flange Butterfly Valve
| Type | High Performance (Double Offset) Butterfly Valve |
| Design Standard | API 609 / EN 593 |
| Face to Face | ISO 5752 / EN 558 |
| Connection | Double Flanged Type |
| Flange Standard | ANSI B16.5 / ASME B16.47 / DIN / JIS |
| Body Material | Carbon Steel / Stainless Steel |
| Disc Material | Stainless Steel (SS304 / SS316) |
| Seat Material | PTFE / RPTFE / Metal Seat |
| Stem Material | Stainless Steel |
| Size Range | DN50 – DN1200 (2” – 48”) |
| Pressure Rating | Class 150 / 300 |
| Temperature Range | -29°C to +260°C |
| Operation | Gear / Pneumatic / Electric Actuator |
| Applicable Media | Oil, Gas, Steam, Chemical Fluids |
| Sealing Type | Soft Seated / Metal Seated |
| Leakage Standard | ANSI Class VI / API 598 |
| Testing Standard | API 598 / EN 12266-1 |
| Mounting Standard | ISO 5211 |
