Description
Premium wafer butterfly valve with SS316 body and PTFE lining, ensuring excellent corrosion resistance, durability, and leak-tight performance in demanding industries.

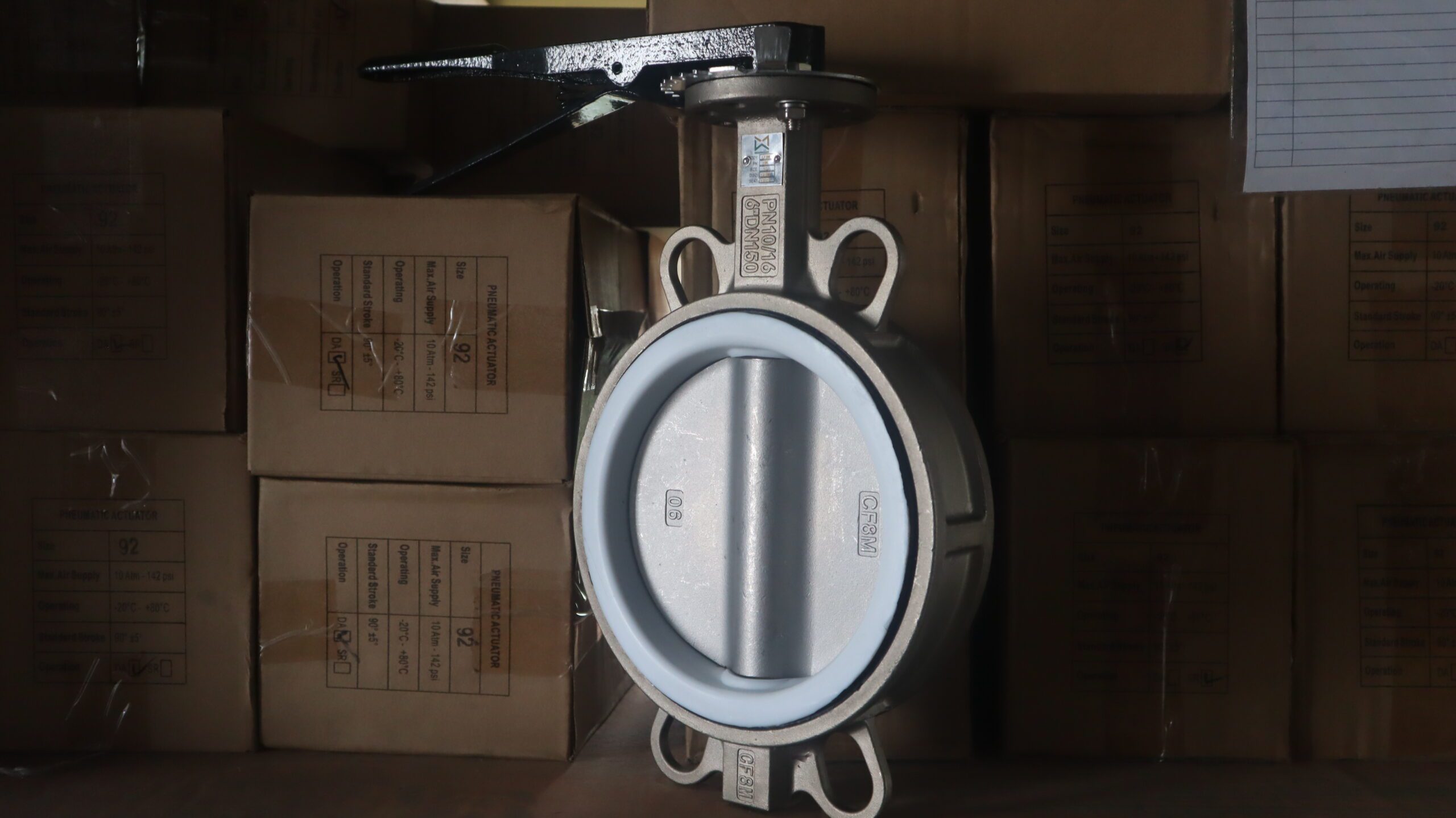

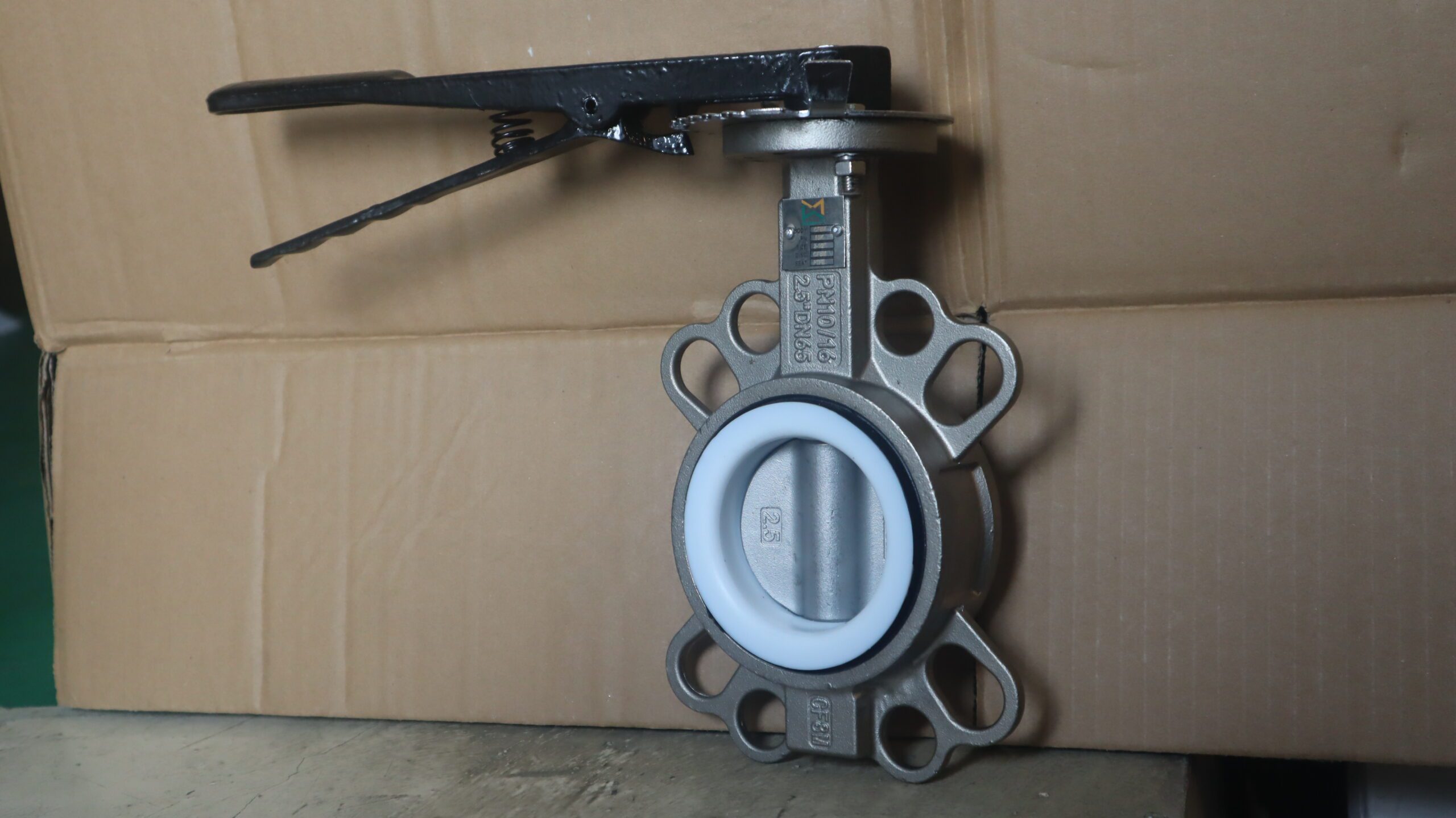

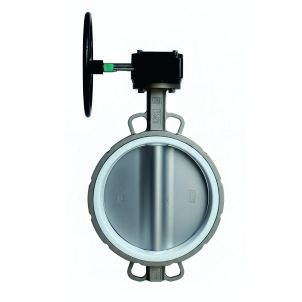

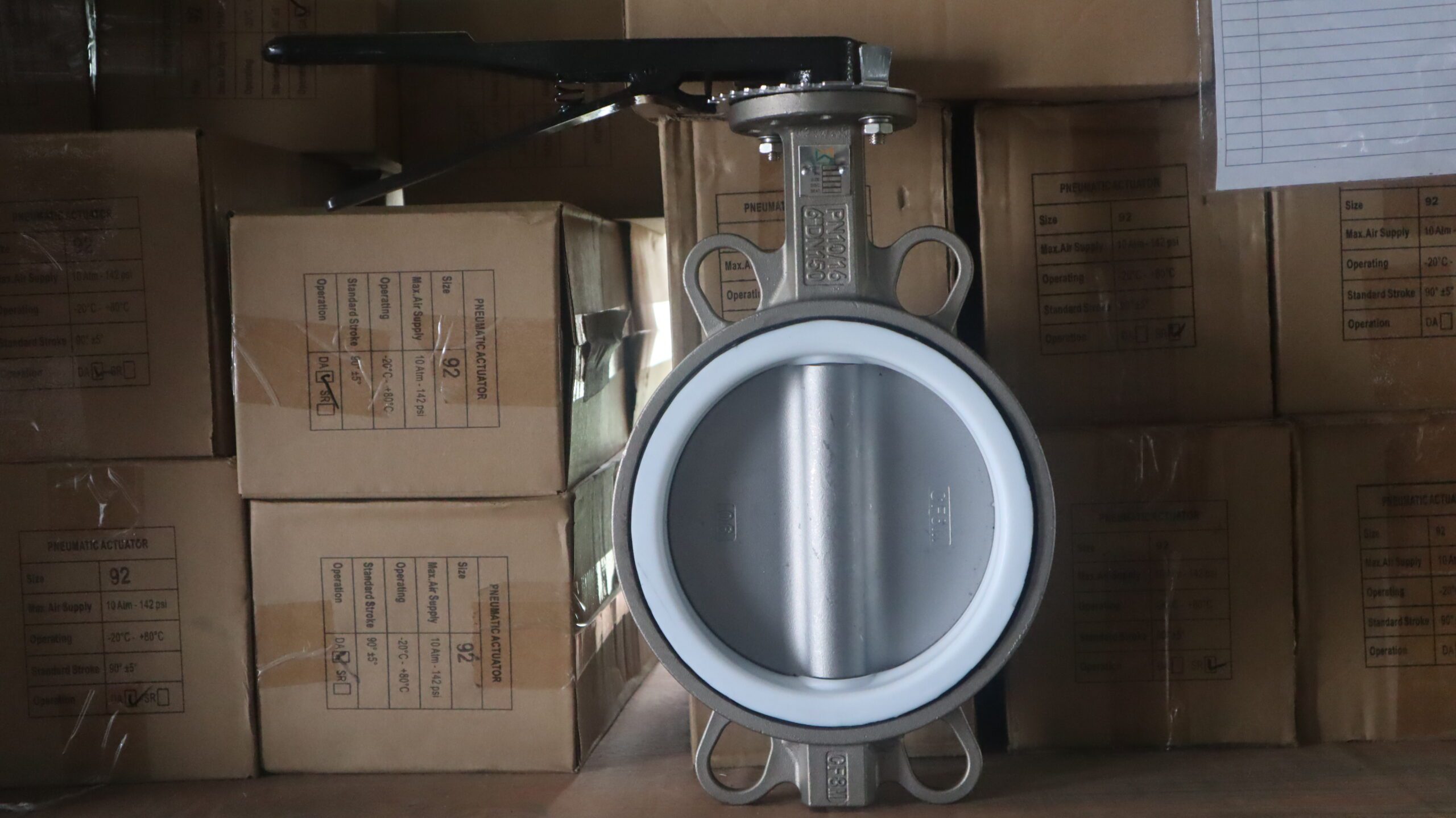

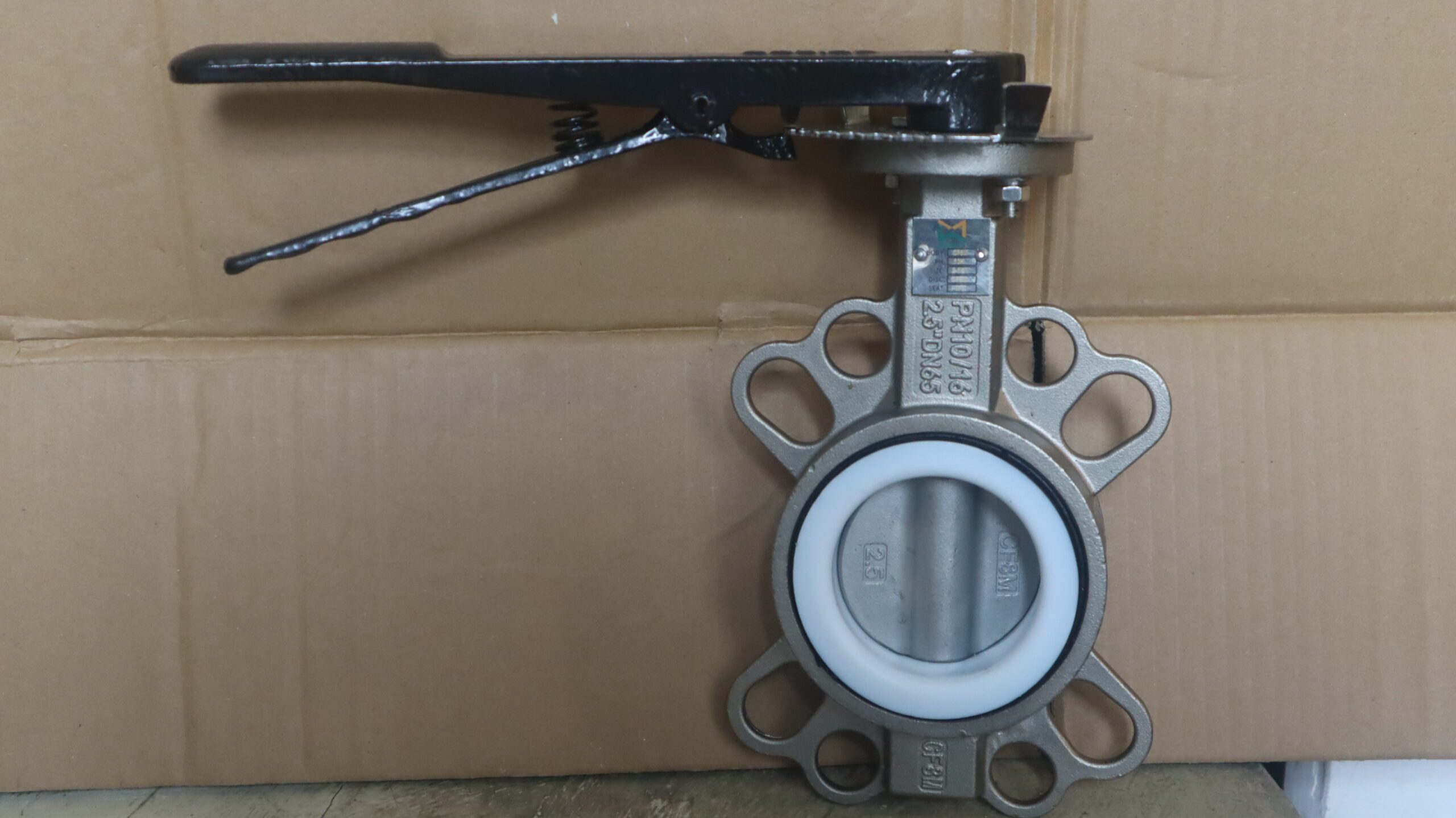

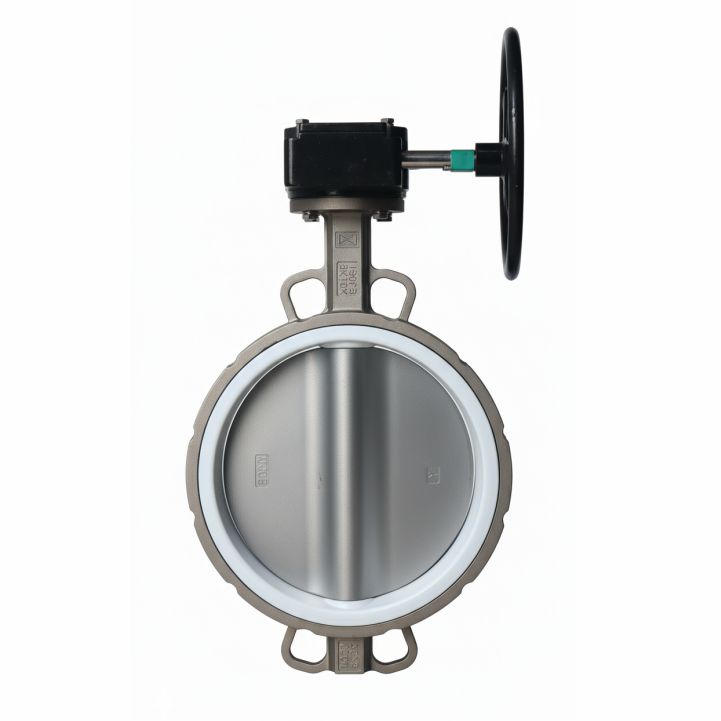

Butterfly Valve Wafer PTFE Lined SS316
| Type | Wafer Butterfly Valve |
| Design Standard | API 609 / EN 593 |
| Face to Face | ISO 5752 / EN 558 Series 20 |
| Connection | Wafer Type (Sandwich) |
| Body Material | Stainless Steel (SS316) |
| Disc Material | Stainless Steel (SS316) |
| Lining Material | PTFE Lined |
| Seat Material | PTFE |
| Stem Material | Stainless Steel |
| Size Range | DN50 – DN600 (2” – 24”) |
| Pressure Rating | PN10 / PN16 |
| Temperature Range | -20°C to +180°C |
| Operation | Lever / Gear / Pneumatic / Electric |
| Applicable Media | Corrosive Chemicals, Acids, Alkalis, Water |
| Sealing Type | Soft Seated (PTFE Lined) |
| Testing Standard | API 598 / EN 12266-1 |
| Mounting Standard | ISO 5211 |
