| Type | Trunnion Mounted Ball Valve |
| Design Standard | API 6D / API 608 / ASME B16.34 |
| Face to Face | ASME B16.10 |
| Connection | Flanged / Butt Weld |
| Flange Standard | ANSI B16.5 / ASME B16.47 |
| Body Material | Cast Steel (WCB) / Stainless Steel (CF8 / CF8M) |
| Ball Type | Trunnion Mounted Ball |
| Seat Material | PTFE / RPTFE / Nylon / Metal Seat |
| Stem Material | Stainless Steel |
| Seat Design | Double Block and Bleed (DBB) |
| Size Range | DN50 – DN1200 (2” – 48”) |
| Pressure Rating | Class 150 / 300 / 600 / 900 / 1500 / 2500 |
| Temperature Range | -29°C to +200°C (soft seat) / higher for metal seat |
| Operation | Lever / Gear / Pneumatic / Electric Actuator |
| Applicable Media | Oil, Gas, Water, Steam |
| Sealing Type | Soft Seated / Metal Seated |
| Fire Safe | API 607 / API 6FA (Optional) |
| Anti-Static Device | Provided |
| Leakage Standard | API 598 / ISO 5208 |
| Testing Standard | API 598 / API 6D |

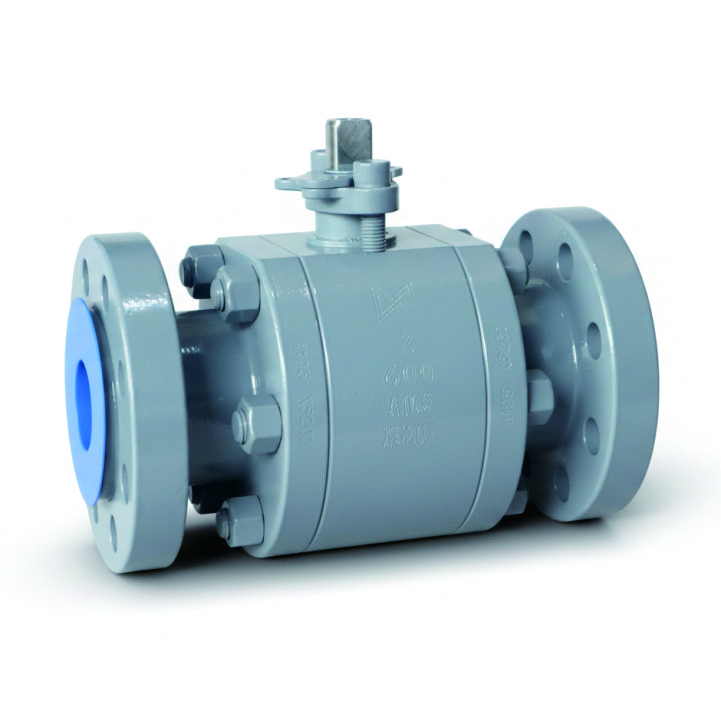

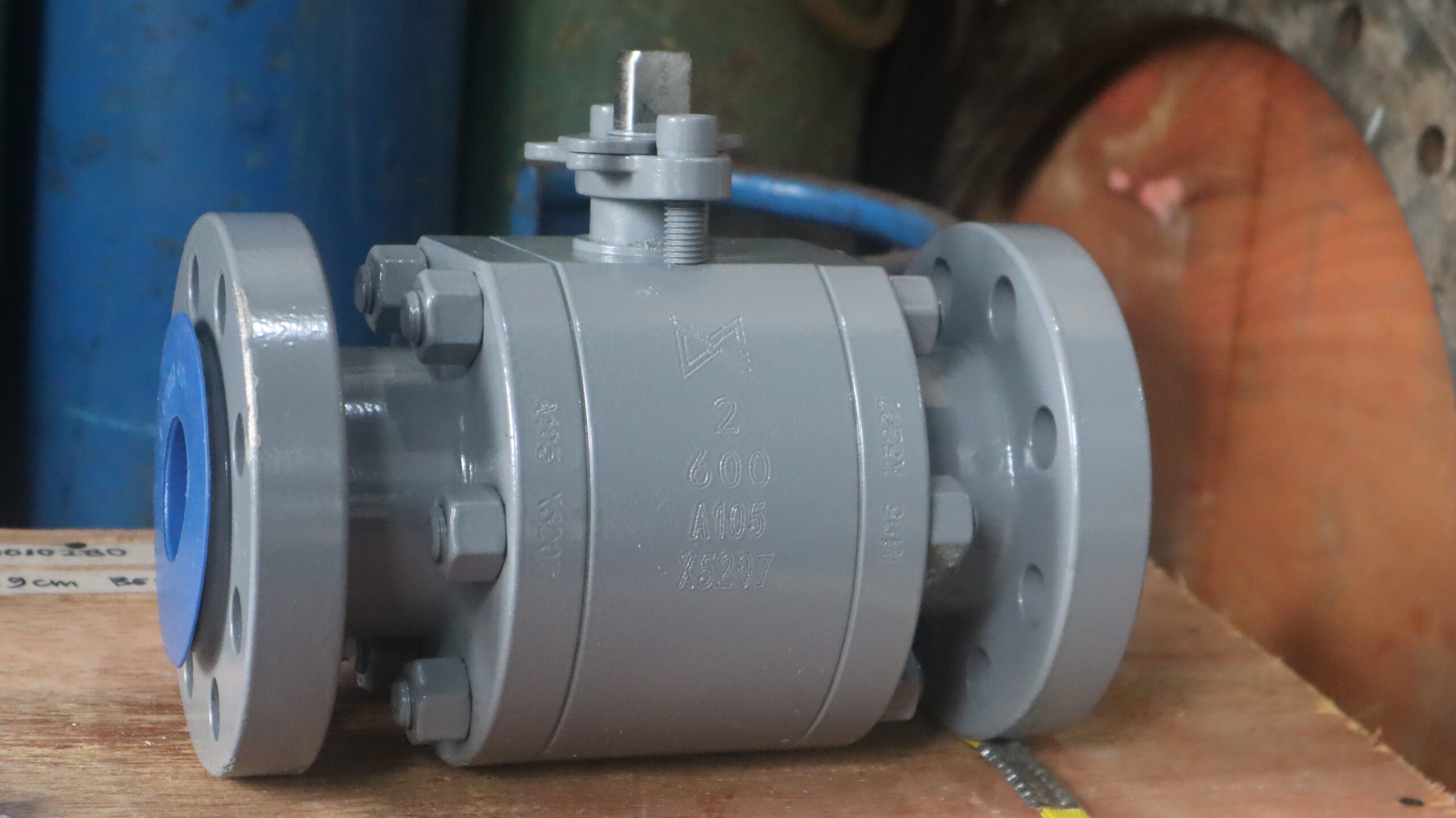

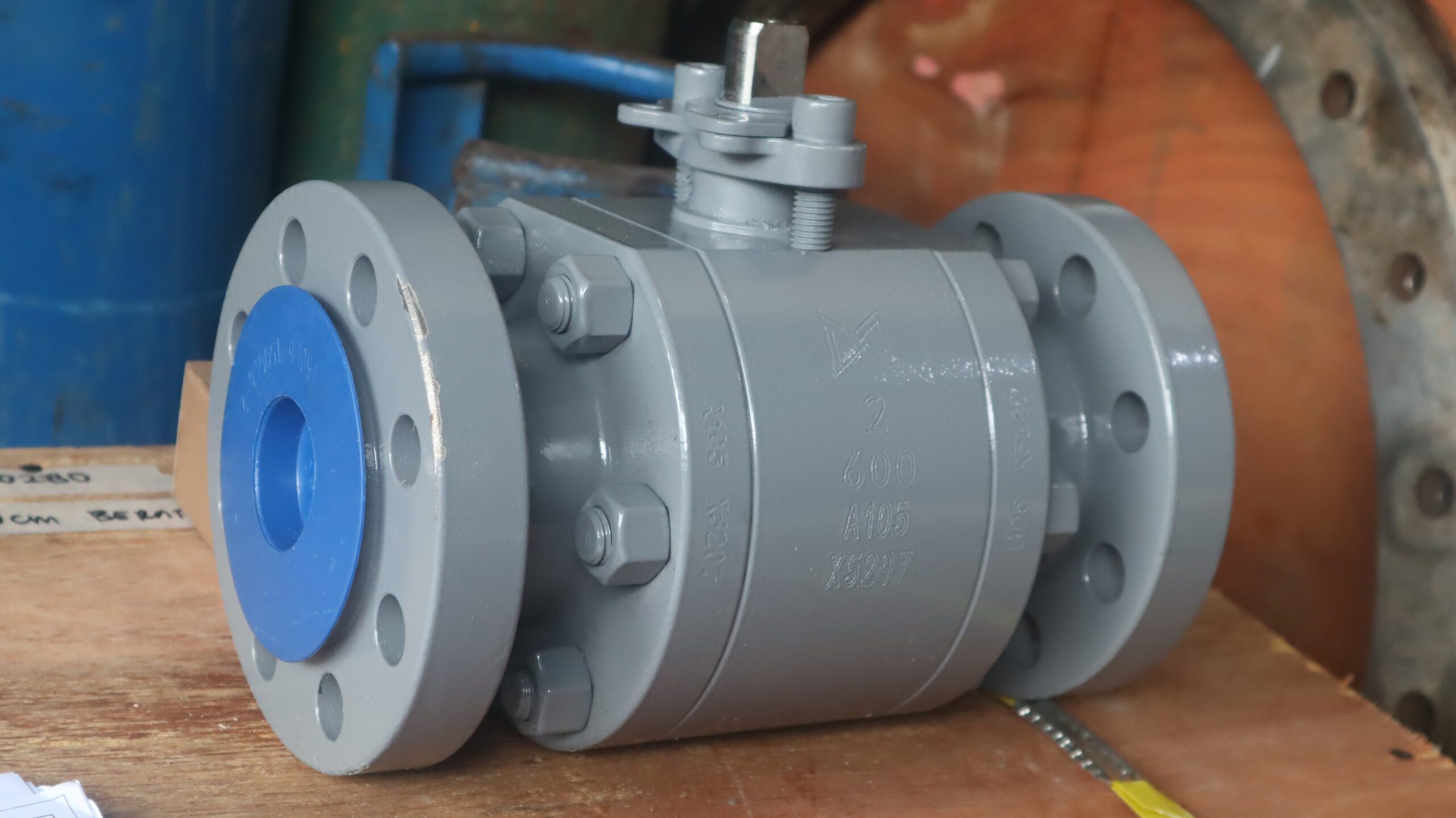

Trunnion mounted ball valve designed for high pressure and large diameter applications, providing low operating torque, tight shut-off performance, and enhanced stability for reliable operation in oil, gas, and industrial pipeline systems.
