Description
Reliable wafer butterfly valve with EPDM seat, designed for tight sealing, efficient flow control, and long-lasting performance in water and general industrial applications.

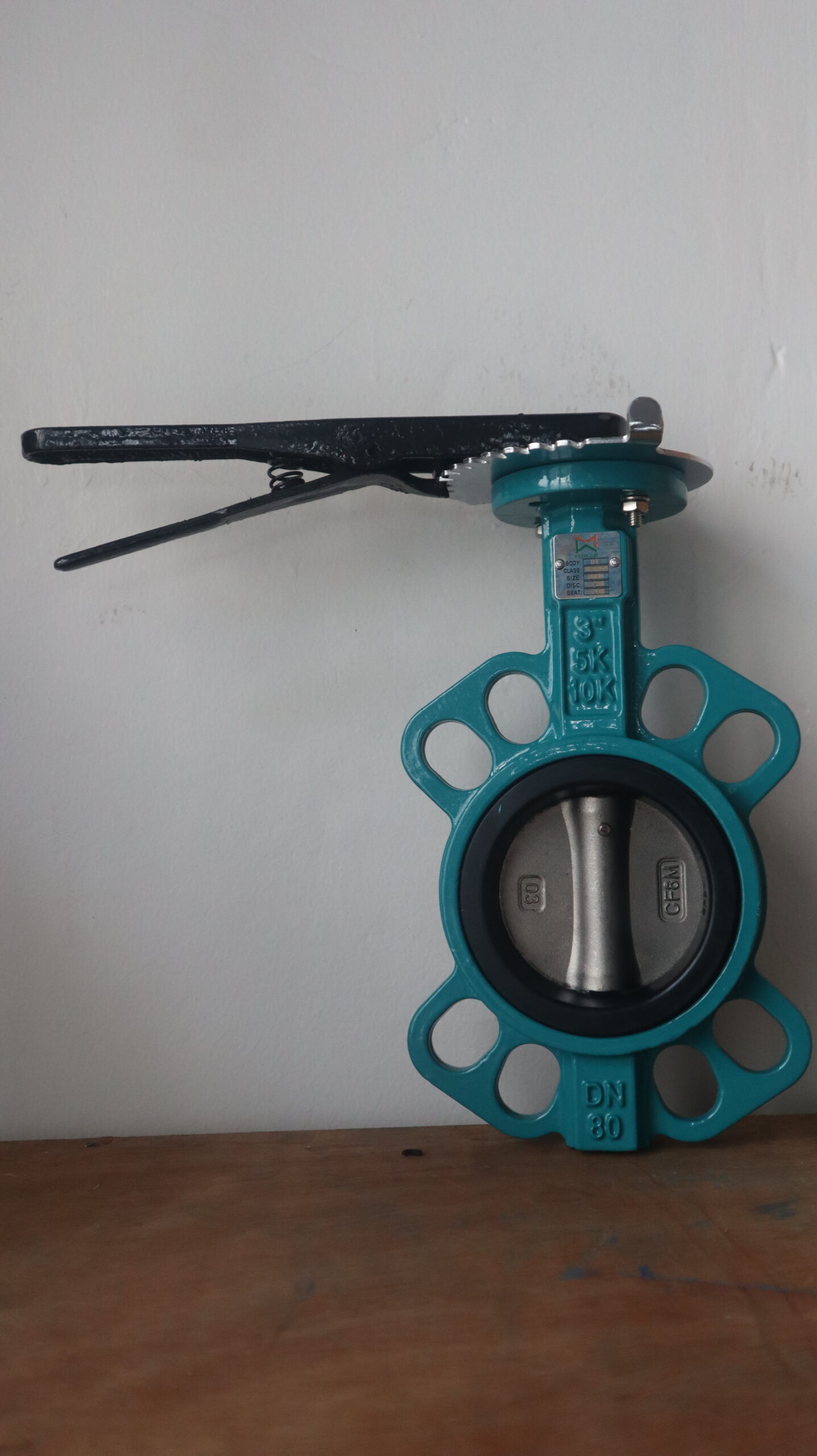

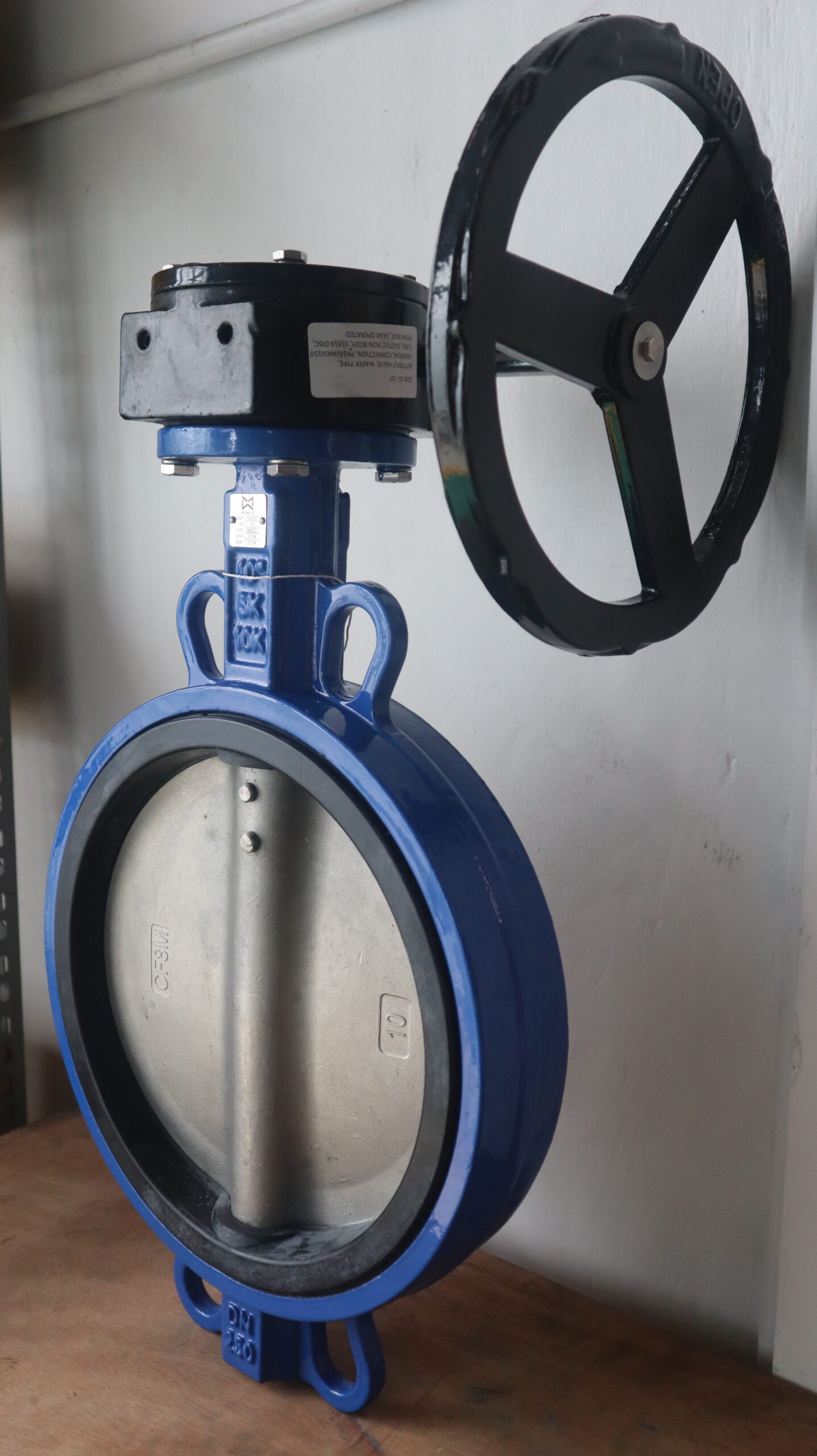

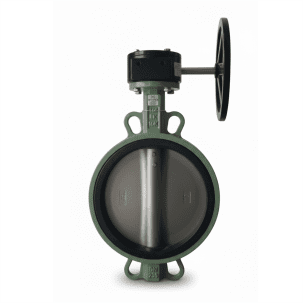

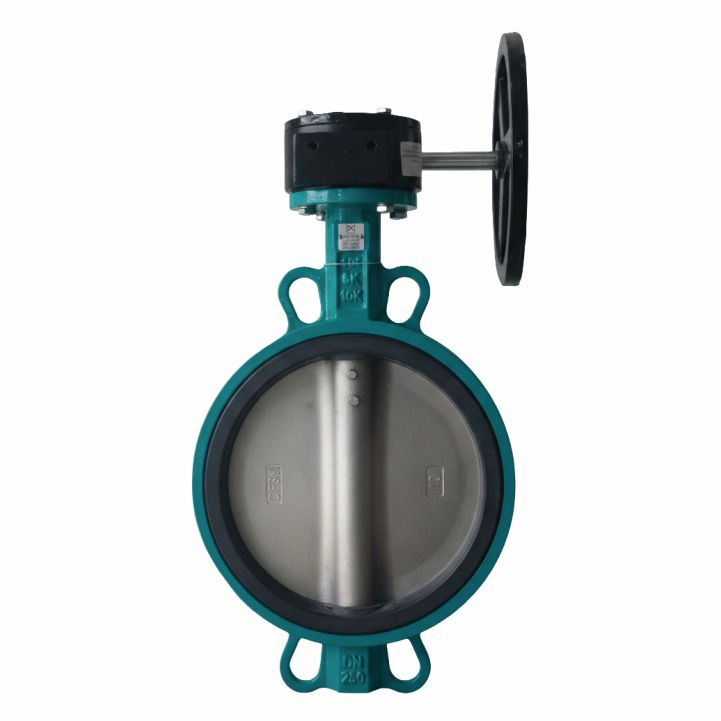

Wafer EPDM Sealing Butterfly Valve
| Type | Wafer Butterfly Valve |
| Design Standard | API 609 / EN 593 |
| Face to Face | ISO 5752 / EN 558 Series 20 |
| Connection | Wafer Type (Sandwich) |
| Body Material | Cast Iron / Ductile Iron |
| Disc Material | Stainless Steel / Ductile Iron (Coated) |
| Seat Material | EPDM (Ethylene Propylene Diene Monomer) |
| Stem Material | Stainless Steel |
| Size Range | DN50 – DN600 (2” – 24”) |
| Pressure Rating | PN10 / PN16 |
| Temperature Range | -10°C to +120°C |
| Operation | Lever / Gear / Pneumatic / Electric |
| Applicable Media | Water, Air, Non-Corrosive Fluids |
| Sealing Type | Soft Seated (EPDM Lined) |
| Testing Standard | API 598 / EN 12266-1 |
| Mounting Standard | ISO 5211 |
