Description
PN16 ball valve designed for reliable shut-off and efficient flow control in medium pressure applications, offering tight sealing and dependable performance for general industrial use.

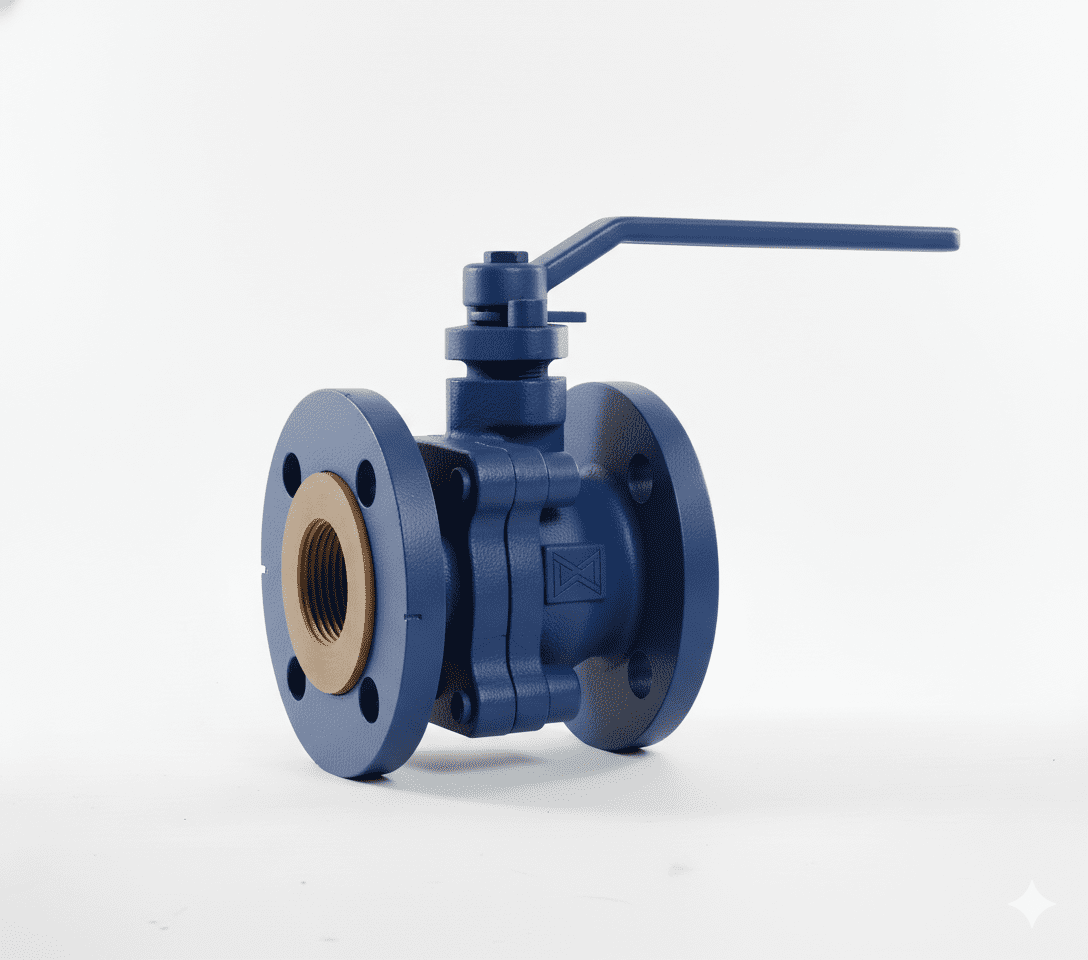

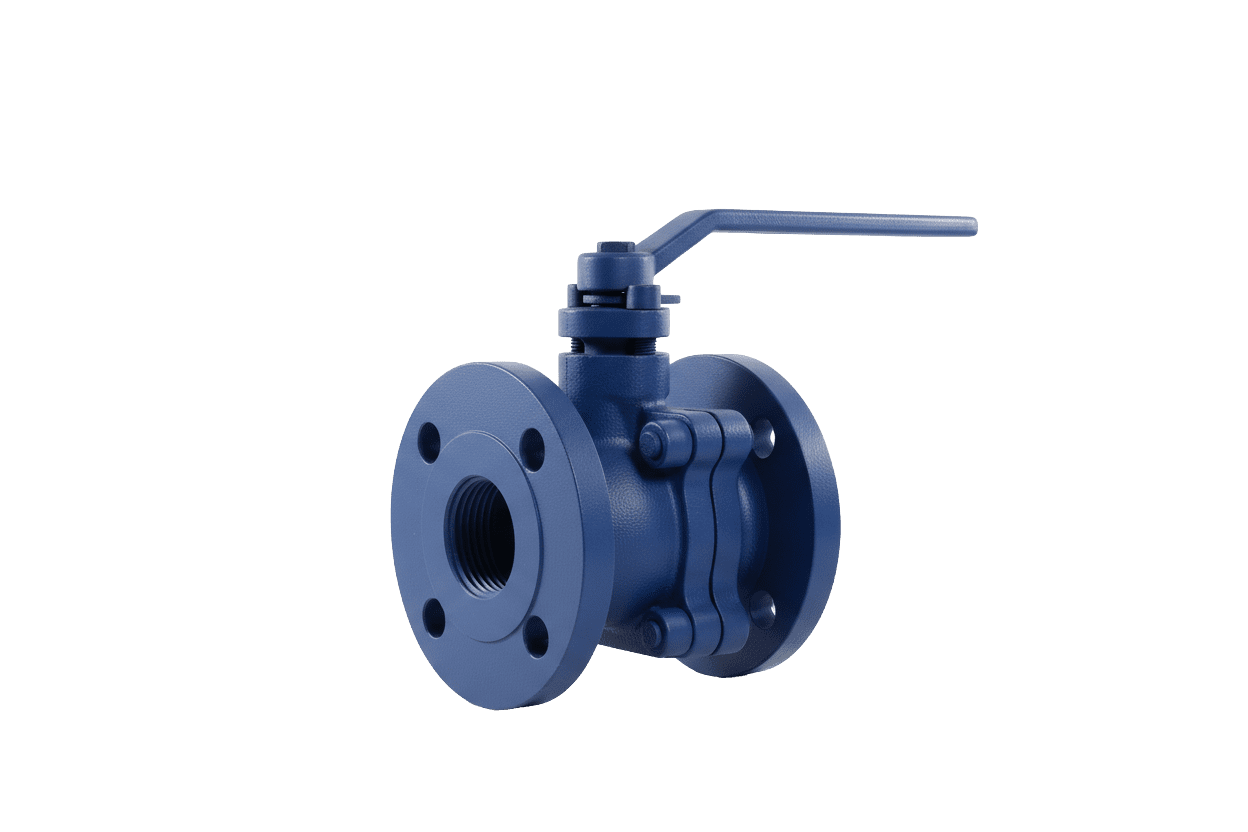

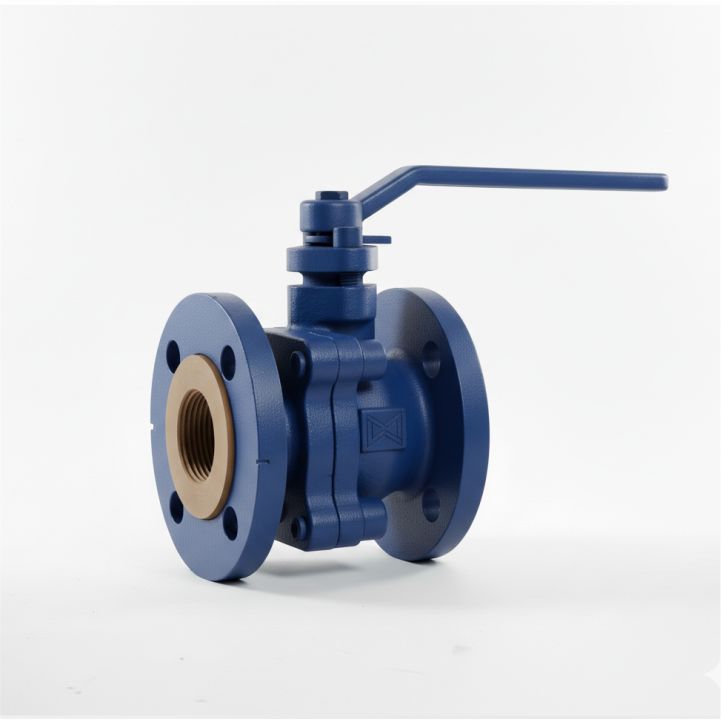

PN 16 Ball Valve
| Type | Ball Valve (PN16) |
| Design Standard | API 608 / EN 1983 |
| Face to Face | EN 558 / ASME B16.10 |
| Connection | Flanged / Threaded Type |
| Flange Standard | DIN PN16 |
| Body Material | Cast Iron / Ductile Iron / Stainless Steel |
| Ball Material | Stainless Steel (SS304 / SS316) |
| Seat Material | PTFE / RPTFE |
| Stem Material | Stainless Steel |
| Size Range | DN15 – DN300 (½” – 12”) |
| Pressure Rating | PN16 |
| Temperature Range | -20°C to +180°C |
| Operation | Lever / Gear / Pneumatic / Electric Actuator |
| Applicable Media | Water, Oil, Gas, Non-Corrosive Fluids |
| Sealing Type | Soft Seated (Bubble Tight Shut-Off) |
| Testing Standard | API 598 / EN 12266-1 |
| Mounting Standard | ISO 5211 |
