Description
Triple offset butterfly valve engineered for high temperature and high pressure applications, featuring metal-to-metal sealing, zero leakage performance, and superior durability in critical industrial systems.

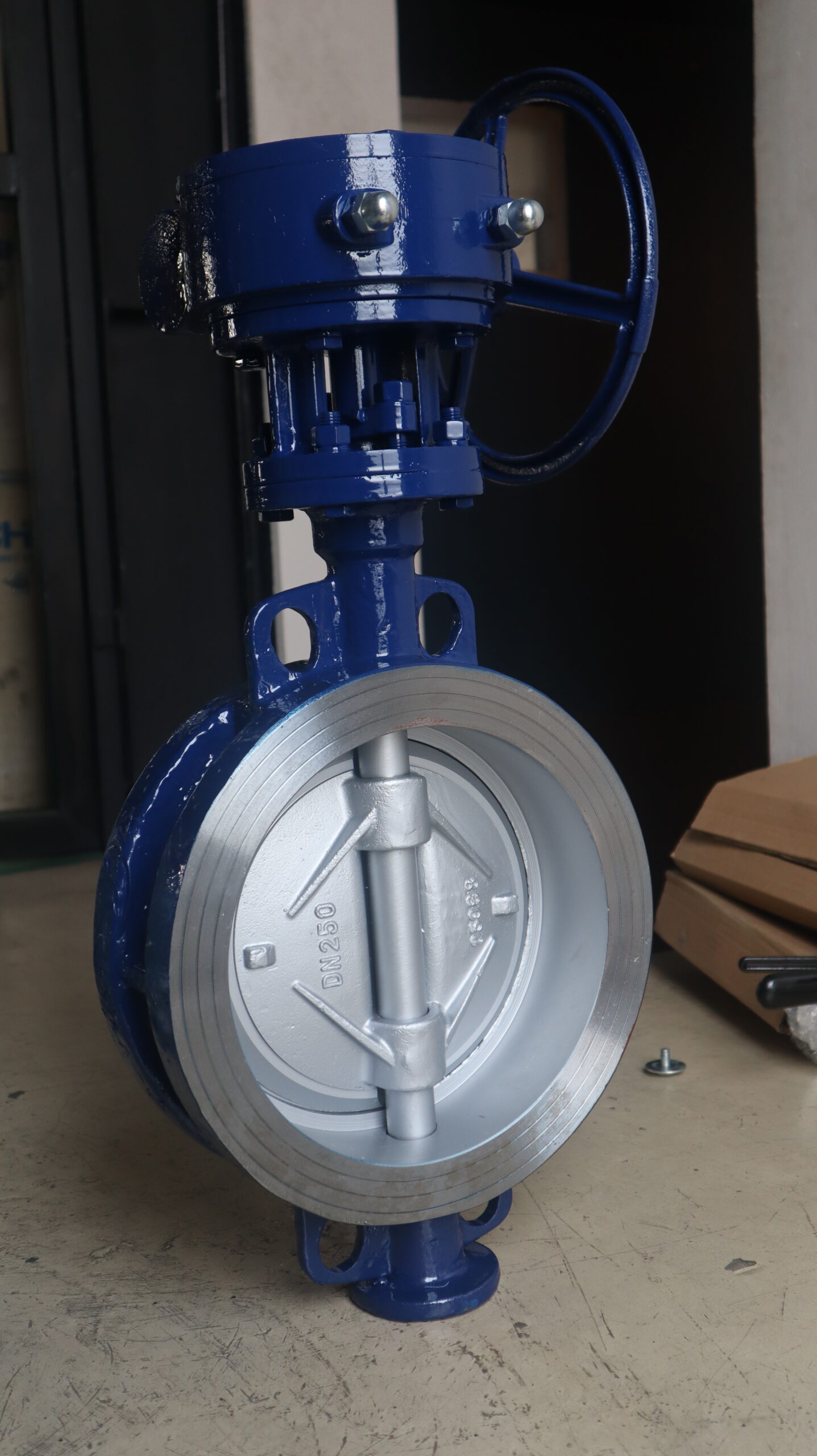

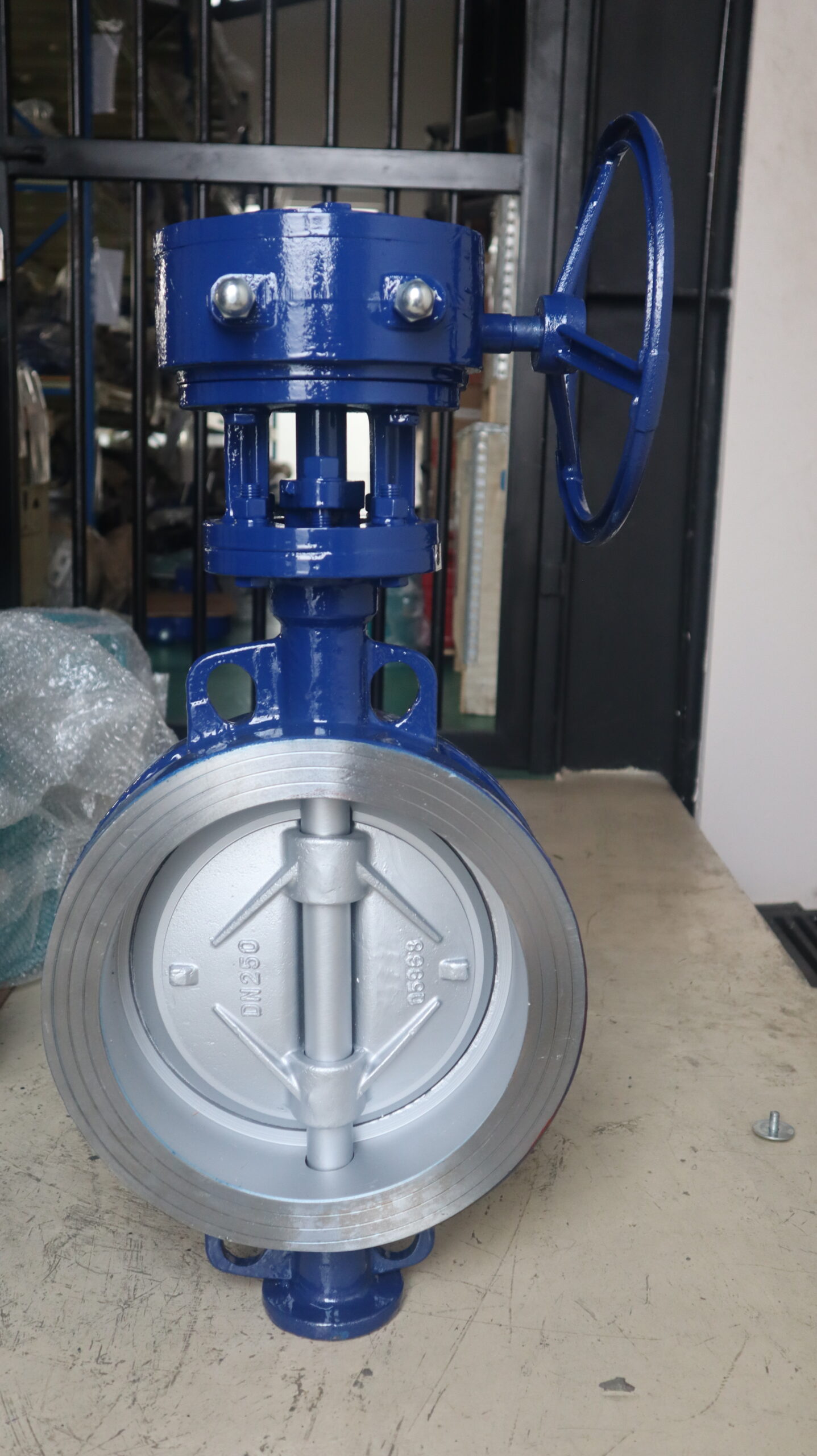

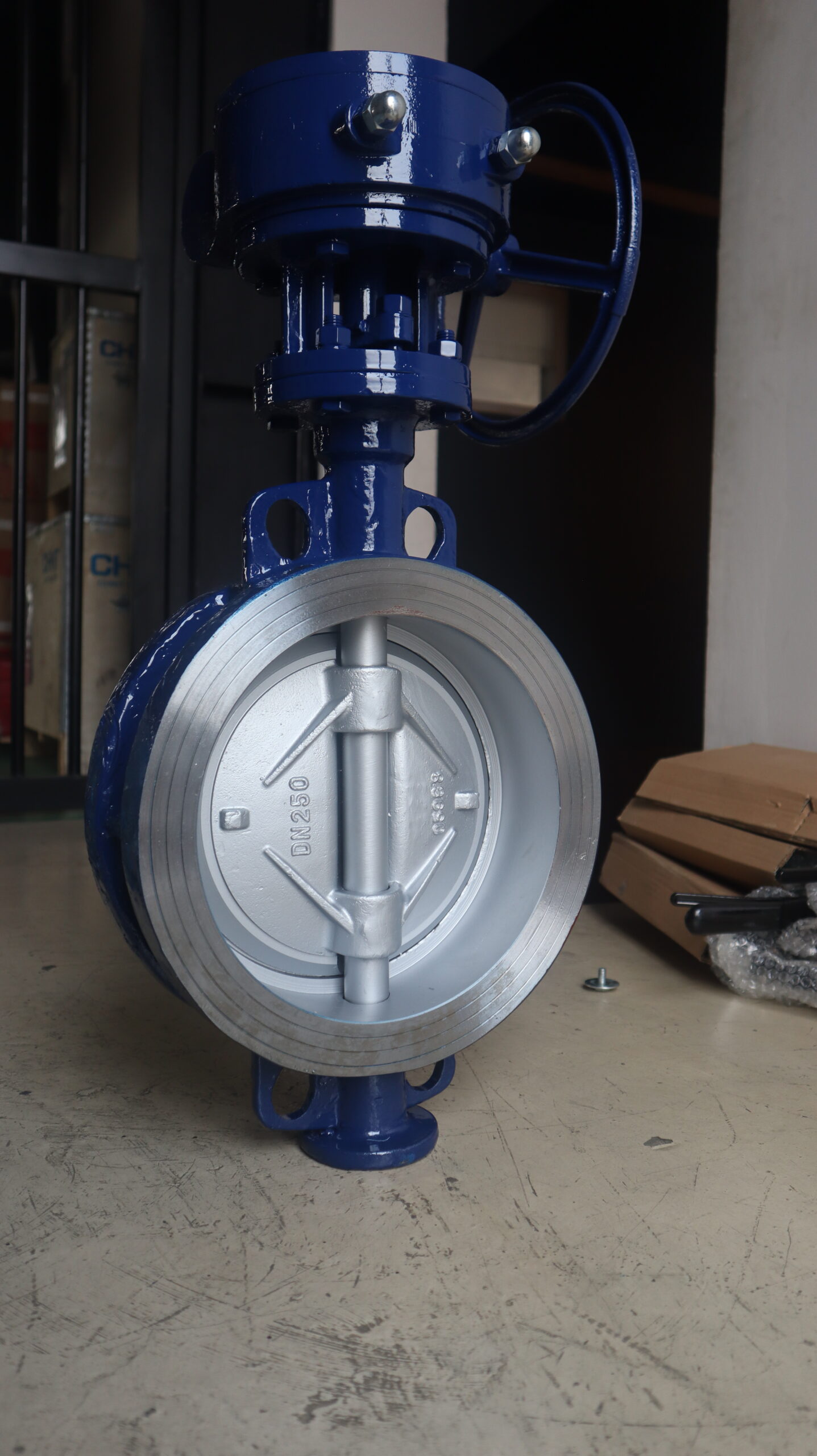

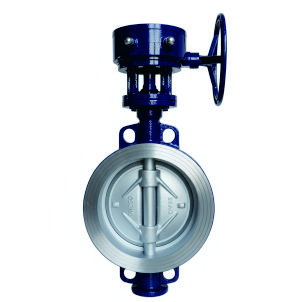

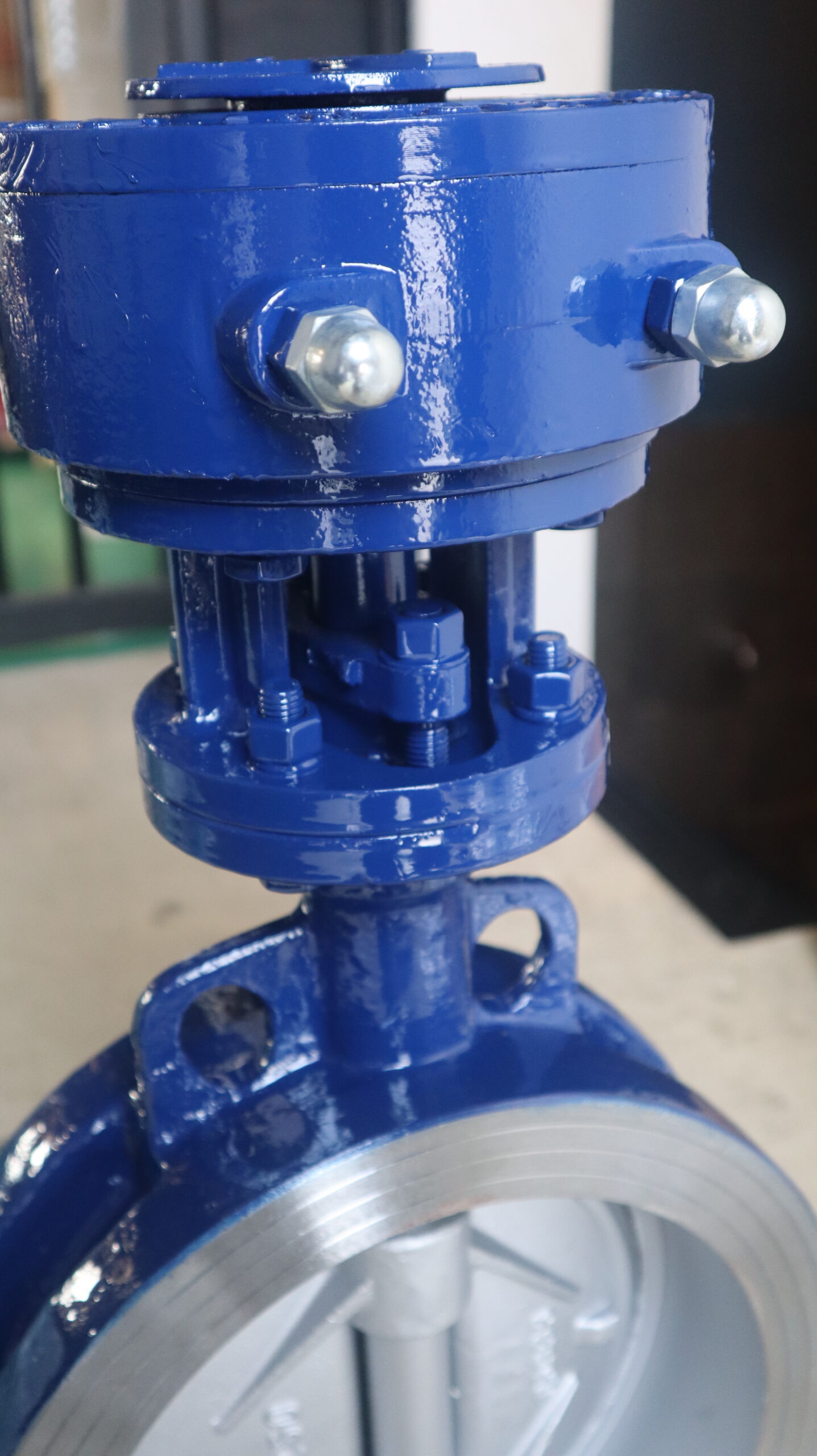

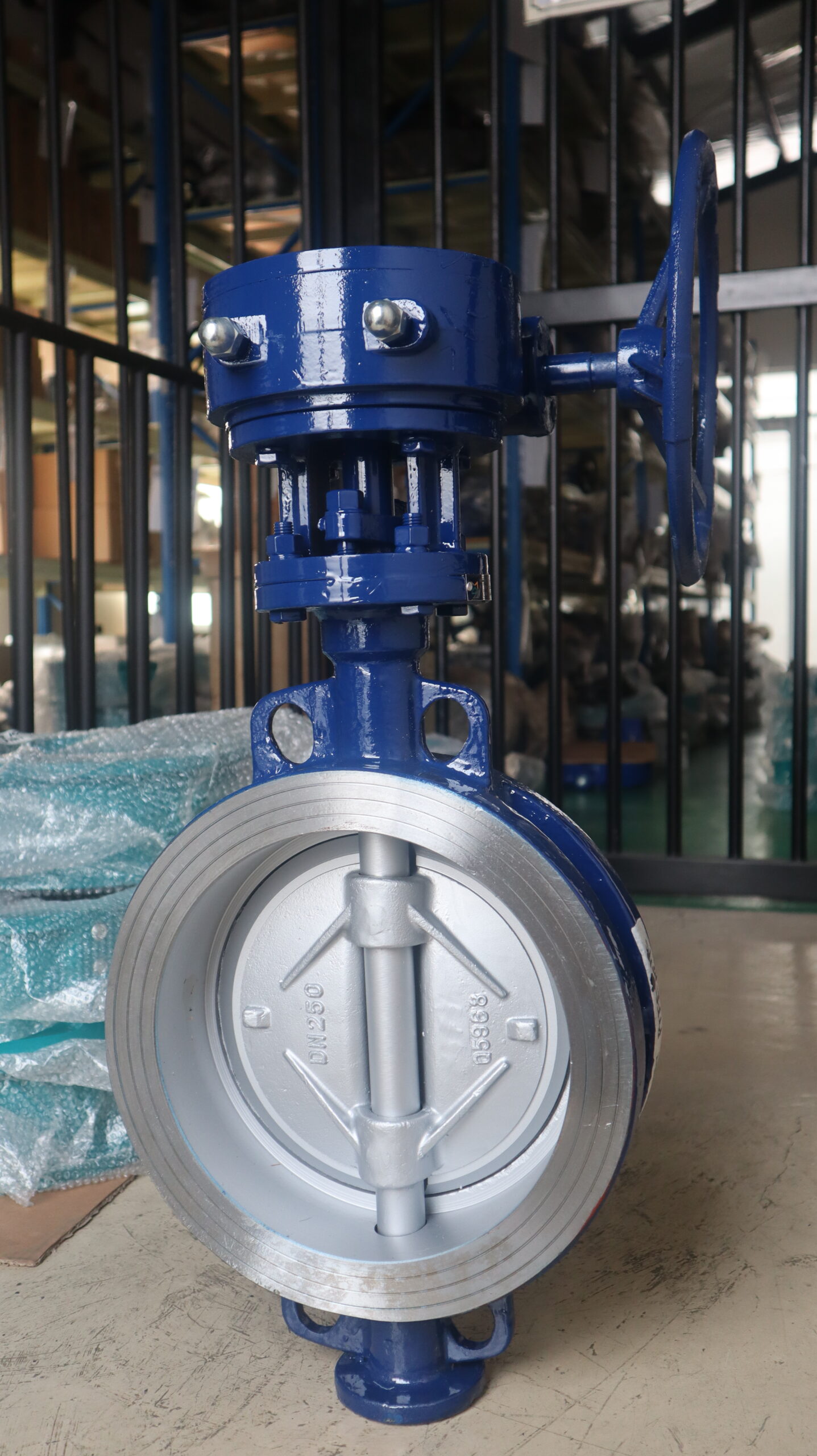

Industrial Triple Offset Butterfly Valve
| Type | Triple Offset Butterfly Valve |
| Design Standard | API 609 / ASME B16.34 |
| Face to Face | API 609 / EN 558 |
| Connection | Wafer / Lug / Flanged Type |
| Body Material | Carbon Steel / Stainless Steel |
| Disc Material | Stainless Steel (SS304 / SS316) |
| Seat Material | Metal Seat (Stainless Steel / Alloy) |
| Stem Material | Stainless Steel |
| Size Range | DN50 – DN1200 (2” – 48”) |
| Pressure Rating | Class 150 / 300 / 600 |
| Temperature Range | -29°C to +550°C |
| Operation | Gear / Pneumatic / Electric Actuator |
| Applicable Media | Steam, Oil, Gas, High Temperature Fluids |
| Sealing Type | Metal to Metal Sealing |
| Leakage Standard | ANSI Class V / VI |
| Testing Standard | API 598 / EN 12266-1 |
| Mounting Standard | ISO 5211 |
