Description
Robust flanged butterfly valve designed for secure installation, excellent sealing performance, and reliable operation in industrial pipeline systems.

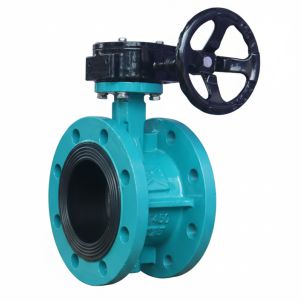

Industrial Flanged Type Butterfly Valve
| Type | Flanged Butterfly Valve |
| Design Standard | API 609 / EN 593 |
| Face to Face | ISO 5752 / EN 558 Series 20 |
| Connection | Flanged Type |
| Flange Standard | ANSI B16.5 / DIN / JIS |
| Body Material | Cast Iron / Ductile Iron / Carbon Steel / Stainless Steel |
| Disc Material | Stainless Steel / Ductile Iron (Coated) |
| Seat Material | EPDM / PTFE / NBR |
| Stem Material | Stainless Steel |
| Size Range | DN50 – DN1200 (2” – 48”) |
| Pressure Rating | PN10 / PN16 / Class 150 |
| Temperature Range | -10°C to +180°C |
| Operation | Gear Operator / Pneumatic / Electric |
| Applicable Media | Water, Air, Oil, Chemical Fluids |
| Sealing Type | Soft Seated / PTFE Lined |
| Testing Standard | API 598 / EN 12266-1 |
| Mounting Standard | ISO 5211 |
